Product Model

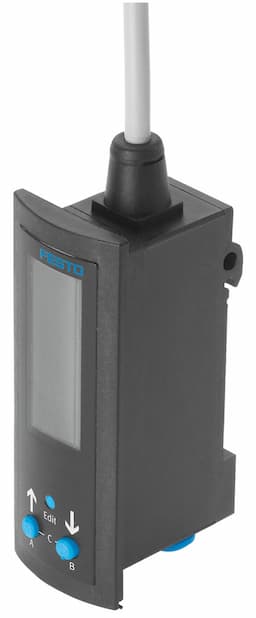

sde3-v1z-b-fq4-2p-m8
Selling Points
- 1The Festo SDE3-V1Z-B-FQ4-2P-M8 pressure sensor provides precise measurements with an accuracy of ±0.3% FS, ensuring reliable performance in various industrial applications.
- 2This pressure sensor operates within a temperature range of 0 to 50°C and measures relative pressure from 0 to -1 bar, making it suitable for diverse environments.
- 3The SDE3-V1Z-B-FQ4-2P-M8 features an IP65 protection rating, ensuring it is dustproof and protected against water jets, enhancing its durability in harsh industrial settings.
- 4With a teach-in setting option and a tamper-proof fuse, this pressure sensor is easy to install and configure, reducing setup time and increasing efficiency.
- 5Festo offers detailed documentation and support for the SDE3-V1Z-B-FQ4-2P-M8, including CAD data and engineering tools, ensuring seamless integration and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00991165 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant | Measured variable | Differential pressure |
Method of measurement | Piezoresistive pressure sensor with display | Pressure measuring range initial value | 0psi |
Pressure measuring range end value | -14.5psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
Ambient temperature | 0°C 50°C | Accuracy in ± % FS | 2%FS |
Switching output | 2xPNP | Switching function | Freely programmable |
Switching element function | Switchable | Reproducibility of switching value | 0.3% |
Max. output current | 100mA | Short-circuit protection | Pulsed |
DC operating voltage range | 15V 30V | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection for input 1, connection pattern | 00991171 | Cable length | 0.3m |
Type of mounting | Front panel mounting | Mounting position | Any |
Pneumatic connection | QS-4 | Product weight | 61g |
Housing material | PA-reinforced PC | Display type | Illuminated LCD |
Switching status indication | LCD yellow | Setting options | Teach-in |
Protection against tampering | PIN code | Setting range threshold value | 0% 100% |
Setting range hysteresis | 0% 90% | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 540201 |
Specifications may be subject to change without notice
