Product Model
sde5-d10-c3-q6e-p-k
Selling Points
- 1High Accuracy and Reliability: The SDE5-D10-C3-Q6E-P-K pressure sensor offers a repetition accuracy of ±0.3% FS and a temperature coefficient of ±0.05% FS/K, ensuring precise measurements in various industrial conditions.
- 2Wide Pressure Range: This sensor measures relative pressure with a range of 0 to 10 bar, making it suitable for a variety of applications, including pneumatic systems and compressed air management.
- 3Robust Construction: Built with PA and POM materials, the sensor has an IP40 protection class and a corrosion resistance classification of CRC 2, ensuring durability in harsh industrial environments.
- 4Easy Installation: The SDE5-D10-C3-Q6E-P-K comes with a 3-wire cable connection to EN 60947-5-2 and is available in both plug and cable versions, making it easy to integrate into existing systems.
- 5Versatile Output Options: The sensor offers PNP switching output with a maximum current of 100 mA and can be configured for both normally closed (N/C) and normally open (N/O) contacts, providing flexibility in various control applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Certification | RCM compliance mark c UL us - Recognized (OL) | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
Measured variable | Relative pressure | Method of measurement | Piezoresistive pressure sensor |
Pressure measuring range initial value | 0bar | Pressure measuring range end value | 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible |
Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
Repetition accuracy in ± %FS | 0.3%FS | Temperature co-efficient in ± %FS/K | 0.05%FS/K |
Switching output | PNP | Switching function | Window comparator |
Switching element function | N/C contact | Max. output current | 100mA |
Short-circuit protection | yes | DC operating voltage range | 15V 30V |

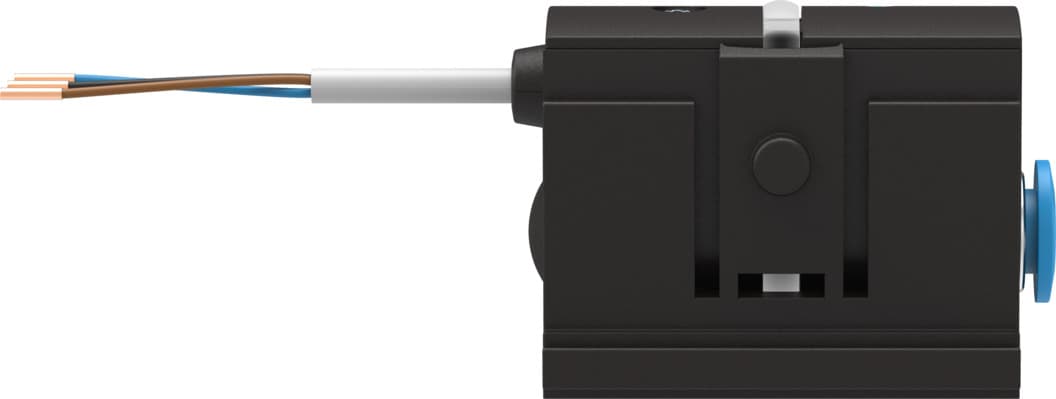

Reverse polarity protection | for all electrical connections | Electrical connection | 3-wire Cable as per EN 60947-5-2 |
Cable length | 2.5m | Type of mounting | With accessories |

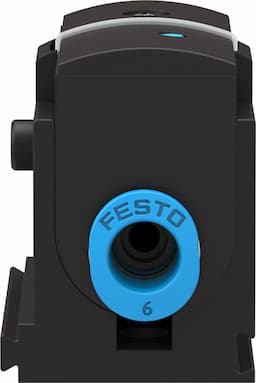

Mounting position | Any | Pneumatic connection | QS-6 |
Product weight | 47g | Housing material | PA POM |
Switching status indication | LED yellow | Setting range threshold value | 0% 100% |
Degree of protection | IP40 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Manufacturer ID | 542896 |
Specifications may be subject to change without notice
