Product Model

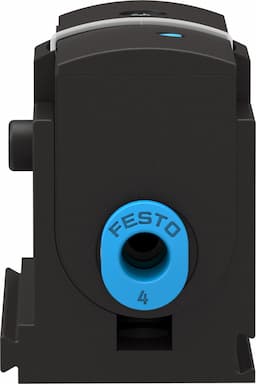

sde5-d10-fp-q4e-p-k
Selling Points
- 1The SDE5-D10-FP-Q4E-P-K pressure sensor offers a high repetition accuracy of ±0.3% FS, ensuring precise monitoring of compressed air systems.
- 2With a pressure measuring range from 0 to 10 bar, this sensor is suitable for a variety of applications, including pneumatic systems and industrial automation.
- 3The sensor features a freely programmable switching output, allowing for customizable settings to meet specific application requirements.
- 4The sensor is designed with robust materials and protection features, including IP40 rating and short circuit protection, ensuring reliable operation in harsh environments.
- 5The SDE5-D10-FP-Q4E-P-K is certified under RCM, c UL us – Recognized (OL), and CE marking, ensuring compliance with EU directives for EMC and RoHS.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00991887 | Certification | RCM compliance mark c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant | Measured variable | Relative pressure |
Method of measurement | Piezoresistive pressure sensor | Pressure measuring range initial value | 0bar |
Pressure measuring range end value | 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
Ambient temperature | 0°C 50°C | Repetition accuracy in ± %FS | 0.3%FS |
Temperature co-efficient in ± %FS/K | 0.05%FS/K | Switching output | PNP |
Switching function | Freely programmable | Switching element function | Switchable |
Max. output current | 100mA | Short-circuit protection | yes |
DC operating voltage range | 15V 30V | Reverse polarity protection | for all electrical connections |

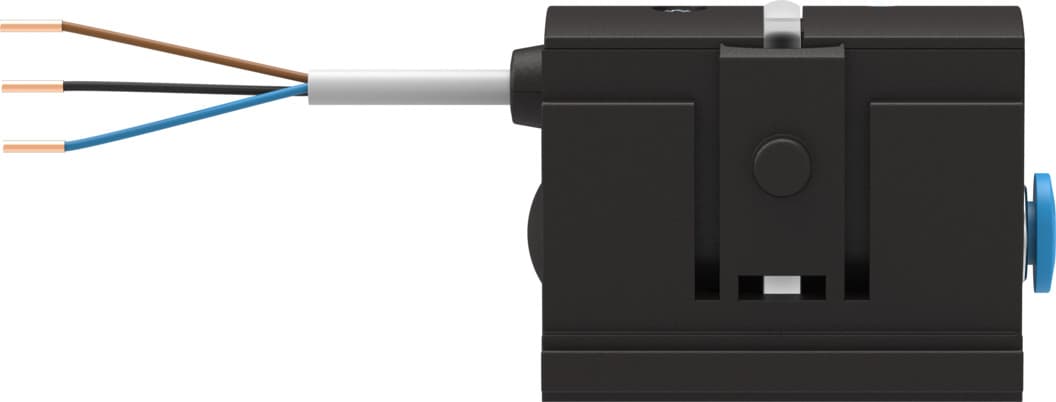

Electrical connection | 3-wire Cable as per EN 60947-5-2 | Cable length | 2.5m |
Type of mounting | With accessories | Mounting position | Any |
Pneumatic connection | QS-4 | Product weight | 47g |
Housing material | PA POM | Switching status indication | LED yellow |
Setting range threshold value | 0% 100% | Degree of protection | IP40 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 542901 |
Specifications may be subject to change without notice
