Product Model

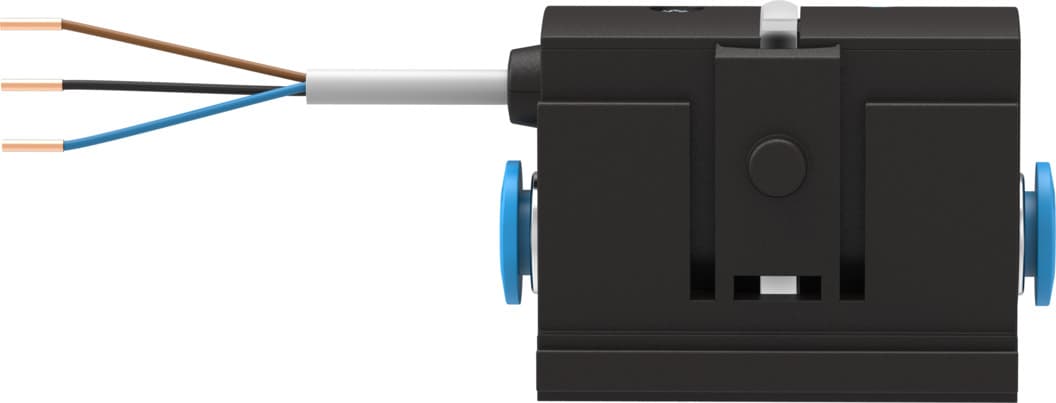

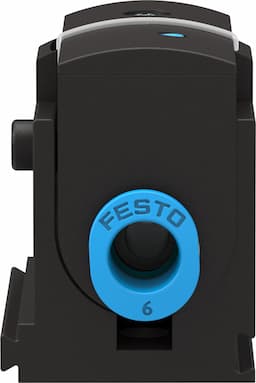

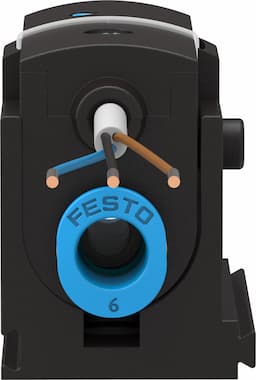

sde5-d10-fp-q6-p-k
Selling Points
- 1The SDE5-D10-FP-Q6-P-K pressure sensor provides a high repetition accuracy of ±0.3% FS, ensuring precise pressure measurements in compressed air systems.
- 2With a freely programmable switching output, this sensor allows for customizable switching functions, making it adaptable to various industrial automation applications.
- 3The sensor operates within a temperature range of 0 to 50°C and can handle compressed air in accordance with ISO 8573-1:2010, ensuring reliable performance in diverse environments.
- 4The SDE5-D10-FP-Q6-P-K features an intuitive commissioning process, allowing users to easily set modes and teach switching pressures, ensuring quick integration into existing systems.
- 5The sensor is designed with IP40 protection rating and can withstand short circuit conditions, making it a reliable choice for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00991887 | Certification | RCM compliance mark c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant | Measured variable | Relative pressure |
Method of measurement | Piezoresistive pressure sensor | Pressure measuring range initial value | 0bar |
Pressure measuring range end value | 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
Ambient temperature | 0°C 50°C | Repetition accuracy in ± %FS | 0.3%FS |
Temperature co-efficient in ± %FS/K | 0.05%FS/K | Switching output | PNP |
Switching function | Freely programmable | Switching element function | Switchable |
Max. output current | 100mA | Short-circuit protection | yes |
DC operating voltage range | 15V 30V | Reverse polarity protection | for all electrical connections |
Electrical connection | 3-wire Cable as per EN 60947-5-2 | Cable length | 2.5m |
Type of mounting | With accessories | Mounting position | Any |
Pneumatic connection | QS-6 | Product weight | 47g |
Housing material | PA POM | Switching status indication | LED yellow |
Setting range threshold value | 0% 100% | Degree of protection | IP40 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 542899 |
Specifications may be subject to change without notice
