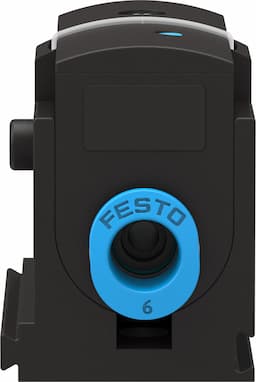

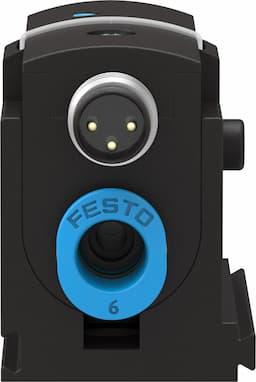

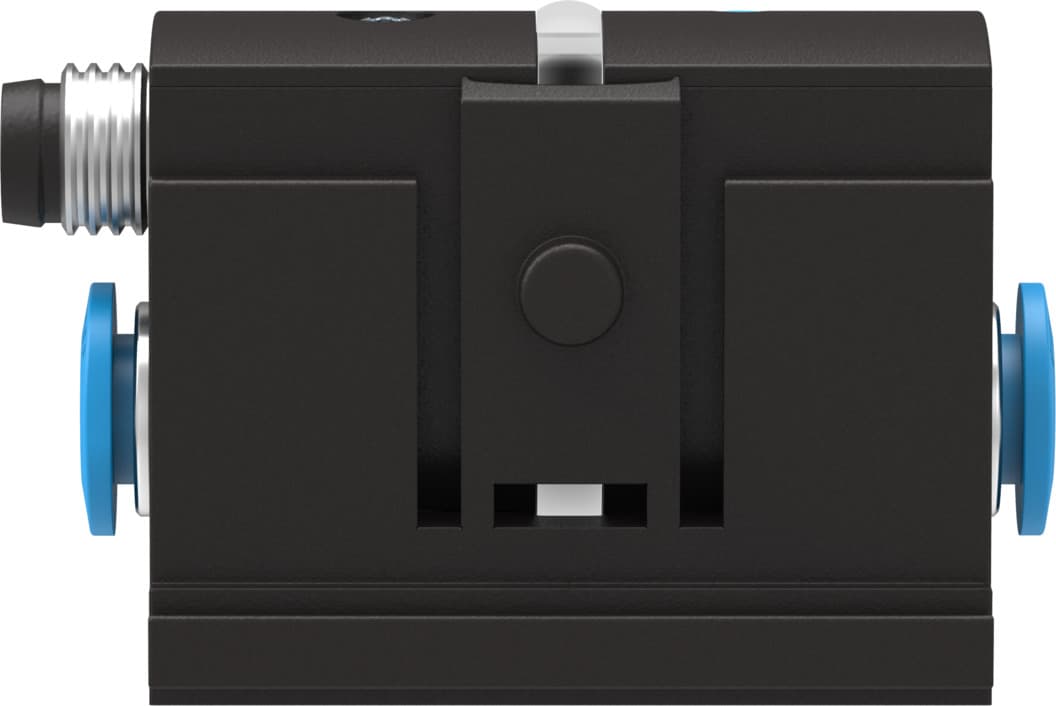

Product Model
sde5-d10-o2-q6-p-m8
Selling Points
- 1The SDE5-D10-O2-Q6-P-M8 pressure sensor offers a repetition accuracy of ±0.3% FS, ensuring precise measurements in compressed air systems.
- 2With a pressure measuring range from 0 to 10 bar, this sensor is suitable for various industrial applications requiring monitoring of pressure levels.
- 3The sensor meets EU directives for EMC and is RoHS-compliant, ensuring it adheres to global safety and environmental standards.
- 4Featuring a PNP switching output and normally open contact, the SDE5-D10-O2-Q6-P-M8 is easy to integrate into existing systems, reducing installation complexity.
- 5Built with POM and PA housing materials, this sensor offers IP40 protection and operates within a temperature range of 0 to 50°C, ensuring durability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00991164 | Certification | RCM compliance mark c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant | Measured variable | Relative pressure |
Method of measurement | Piezoresistive pressure sensor | Pressure measuring range initial value | 0bar |
Pressure measuring range end value | 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
Ambient temperature | 0°C 50°C | Repetition accuracy in ± %FS | 0.3%FS |
Temperature co-efficient in ± %FS/K | 0.05%FS/K | Switching output | PNP |
Switching function | Threshold value with variable hysteresis | Switching element function | N/O contact |
Max. output current | 100mA | Short-circuit protection | yes |
DC operating voltage range | 15V 30V | Reverse polarity protection | for all electrical connections |
Electrical connection | 3-pin M8x1 Plug as per EN 60947-5-2 Round design | Type of mounting | With accessories |
Mounting position | Any | Pneumatic connection | QS-6 |
Product weight | 19g | Housing material | PA POM |
Switching status indication | LED yellow | Setting range threshold value | 0% 100% |
Degree of protection | IP40 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Manufacturer ID | 542892 |
Specifications may be subject to change without notice
