Product Model
sdk-3-pk-3
Selling Points

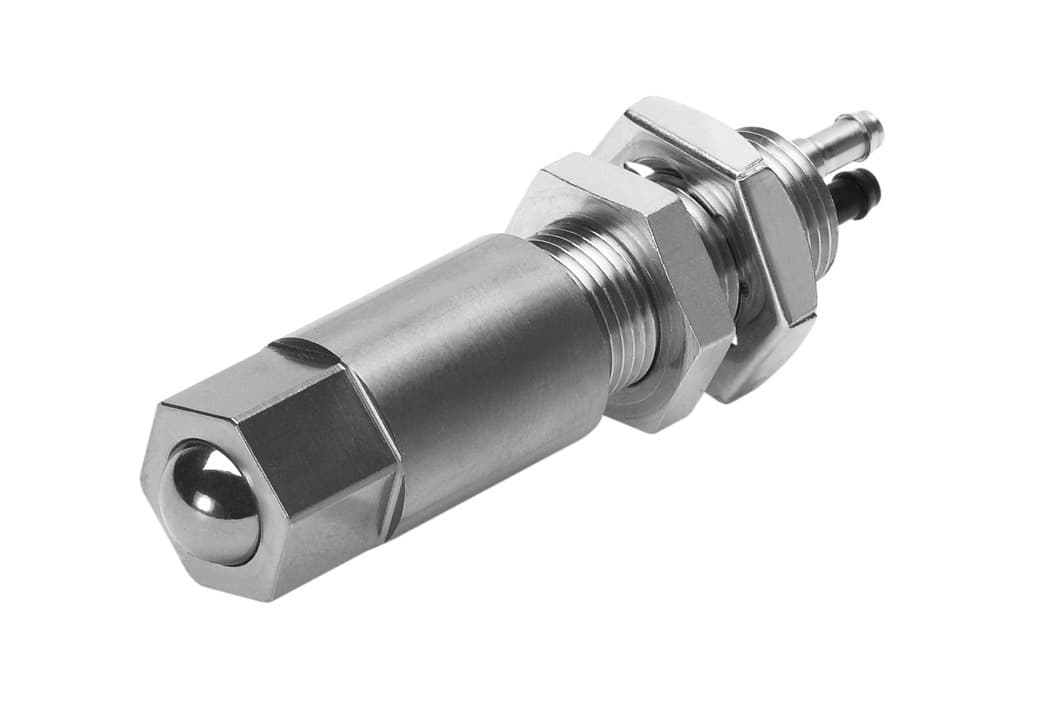

- 1The Festo SDK-3-PK-3 pneumatic valve is particularly suitable for end-position sensing and position monitoring, requiring a high degree of accuracy.
- 2This valve features mechanical actuation, providing a reliable and consistent operation.
- 3The SDK-3-PK-3 operates as a 3/2-way valve, closed and monostable, ensuring precise control over fluid flow.
- 4With a standard nominal flow rate of 16 l/min, this valve is designed to handle moderate pneumatic working port requirements.
- 5The valve operates within a pressure range of 0 to 8 bar, making it versatile for various pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 3/2, closed, monostable | Actuation type | Mechanical |
Standard nominal flow rate | 16l/min | Pneumatic working port | PK-3 |
Operating pressure | 0bar 8bar | Structural design | Ball seat |
Reset method | Mechanical spring | Nominal width | 0.6mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Type of control | Direct | Flow direction | Non-reversible |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 80°C |
Ambient temperature | -10°C 80°C | Actuating force | 12N |
Product weight | 50g | Type of mounting | With through-hole |
Pneumatic connection 1 | PK-3 | Pneumatic connection 2 | PK-3 |
Pneumatic connection 3 | Not ducted | Manufacturer ID | 8714 |
Specifications may be subject to change without notice
