Product Model
sg-m10
Selling Points

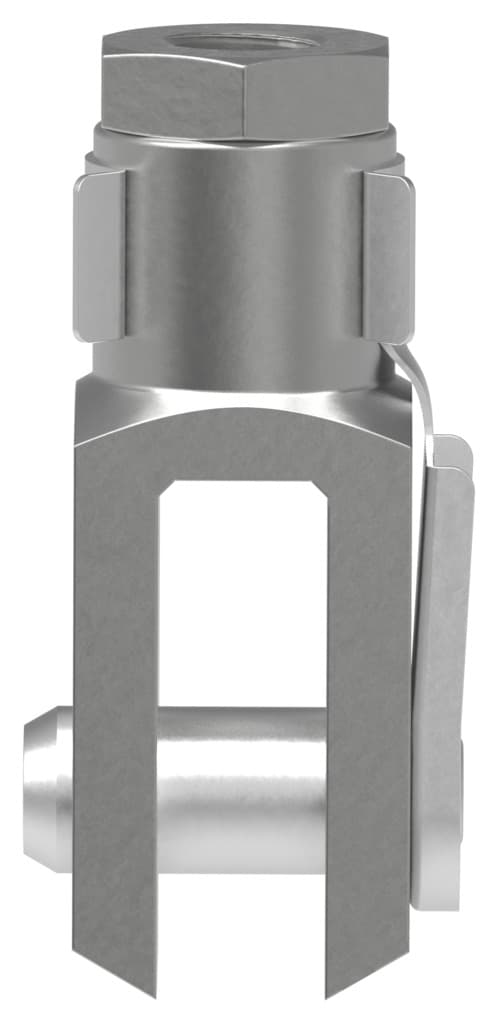

- 1The Festo SG-M10 rod clevis is designed to fit a 10mm bore size, ensuring precise alignment and smooth operation in pneumatic systems.
- 2Made from high-quality steel with a galvanized finish, this rod clevis offers excellent corrosion resistance and durability, meeting standards like DIN 71752.
- 3The SG-M10 is compliant with RoHS regulations, ensuring it meets environmental safety standards and is suitable for use in various industrial applications.
- 4With an ambient temperature range of -40°C to 150°C, this rod clevis can withstand a wide range of operating conditions, making it versatile for different environments.
- 5The product includes a hinged spring pin and hex nut for secure and easy assembly, enhancing its usability in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | M10 | Based on norm | ISO 8140 |
Conforms to standard | DIN 71752 | Threaded connection | Internal thread M10 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper are excluded from use. Exception are printed circuit boards, cables, electrical connectors and coils | Ambient temperature | -40°C 150°C |
Product weight | 104g | Note on materials | RoHS-compliant |
Bolt material | Steel Galvanized | Clevis material | Steel Galvanized |
Nut material | Steel Galvanized | Manufacturer ID | 2674 |
Specifications may be subject to change without notice
