Product Model
sg-m12
Selling Points

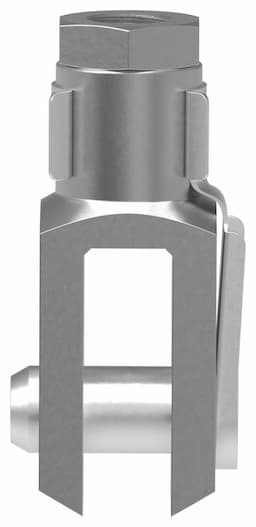

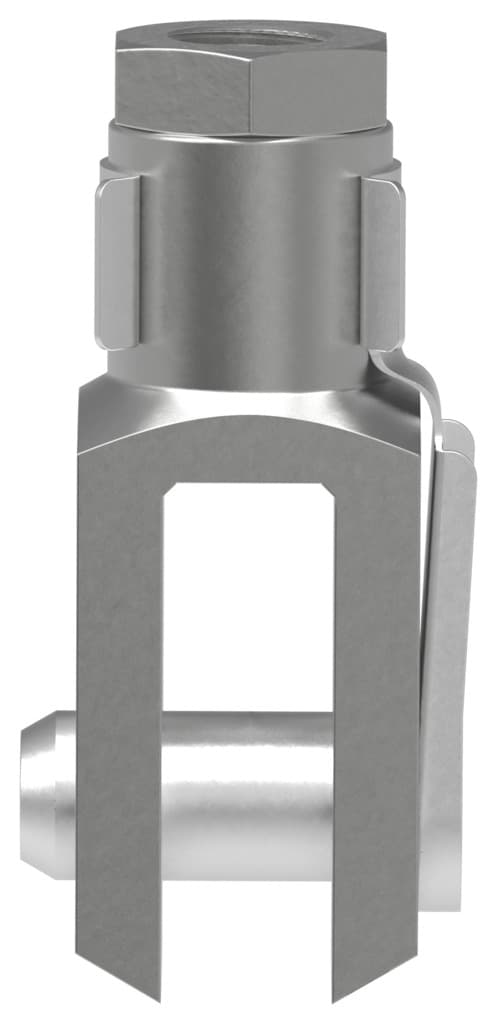

- 1The Festo SG-M12 rod clevis features a low corrosion stress rating, ensuring durability in various environments.
- 2It conforms to ISO 8140 and DIN 71752 standards, ensuring compatibility with a wide range of pneumatic systems.
- 3Made from galvanized steel, this clevis offers excellent strength and resistance to corrosion.
- 4Suitable for ambient temperatures ranging from -40 °C to 150 °C, making it versatile for different applications.
- 5Equipped with an internal M12 thread, facilitating easy connection and disconnection in pneumatic setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | M12 | Based on norm | ISO 8140 |
Conforms to standard | DIN 71752 | Threaded connection | Internal thread M12 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper are excluded from use. Exception are printed circuit boards, cables, electrical connectors and coils | Ambient temperature | -40°C 150°C |
Product weight | 168g | Note on materials | RoHS-compliant |
Bolt material | Steel Galvanized | Clevis material | Steel Galvanized |
Nut material | Steel Galvanized | Manufacturer ID | 2675 |
Specifications may be subject to change without notice
