Product Model
smat-8m-u-e-0,3-m8d
Selling Points
- 1The Festo SMAT-8M-U-E-0,3-M8D position transmitter offers high accuracy and reliability in contactless sensing of piston positions, ensuring precise measurements in various applications.
- 2This compact and powerful position transmitter is designed for easy integration into T-slot systems, making it ideal for space-constrained environments.
- 3Built with a reinforced PA6 housing and featuring IP65 and IP68 protection, the SMAT-8M-U-E-0,3-M8D is resistant to harsh environmental conditions and can withstand moderate corrosion stress.
- 4Equipped with integrated signal processing and analog electrical outputs, this transmitter provides clear and reliable signals for efficient operation.
- 5The SMAT-8M-U-E-0,3-M8D supports cable with plug connections, ensuring easy and secure electrical connections. It also features reverse polarity protection for all electrical connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for T-slot | Symbol | 00992260 |
Certification | RCM compliance mark c UL us - Listed (OL) | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Certificate issuing authority | UL E232949 |
Note on materials | RoHS-compliant Halogen-free | Application note | https://www.festo.com/Drive-Sensor-Overview |
Measured variable | Position | Measuring principle | Magnetic Hall |
Sensing range | 52000μm | Ambient temperature | -40°C 80°C |
Typical sampling interval | 2ms | Max. travel speed | 3m/s |
Displacement resolution | 0.02mm | Repetition accuracy | 0.2mm |
Analog output | 0 - 10 V | Typical linearity error | ±1 mm |
Short-circuit protection | yes | Overload protection | Available |
Output signal | Analog | DC operating voltage range | 15V 30V |
Residual ripple | 10 % | Idle current | 12mA |
Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Cable with plug |
Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 4 |

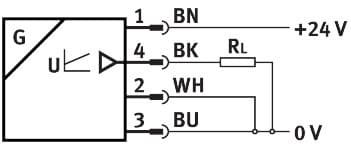

Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | 00991171 |
Connection outlet orientation | Longitudinal | Material of pin contacts | Copper alloy, gold-plated |
Connector cable test conditions | Flexural strength: as per Festo standard Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm | Cable length | 0.3m |
Cable characteristic | Suitable for energy chains/robot applications | Color cable sheath | Gray |
Material of cable sheath | TPE-U(PUR) | Type of mounting | Screwed tightly Can be inserted in slot from above |
Mounting position | Any | Product weight | 9.5g |
Housing material | PA-reinforced High-alloy stainless steel | Material of union nut | Brass, nickel-plated |
Status indicator | LED red, green | Ambient temperature with flexible cable installation | -20°C 70°C |
Degree of protection | IP65 IP68 | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 4 according to ISO 14644-1 |
Manufacturer ID | 553744 |
Specifications may be subject to change without notice
