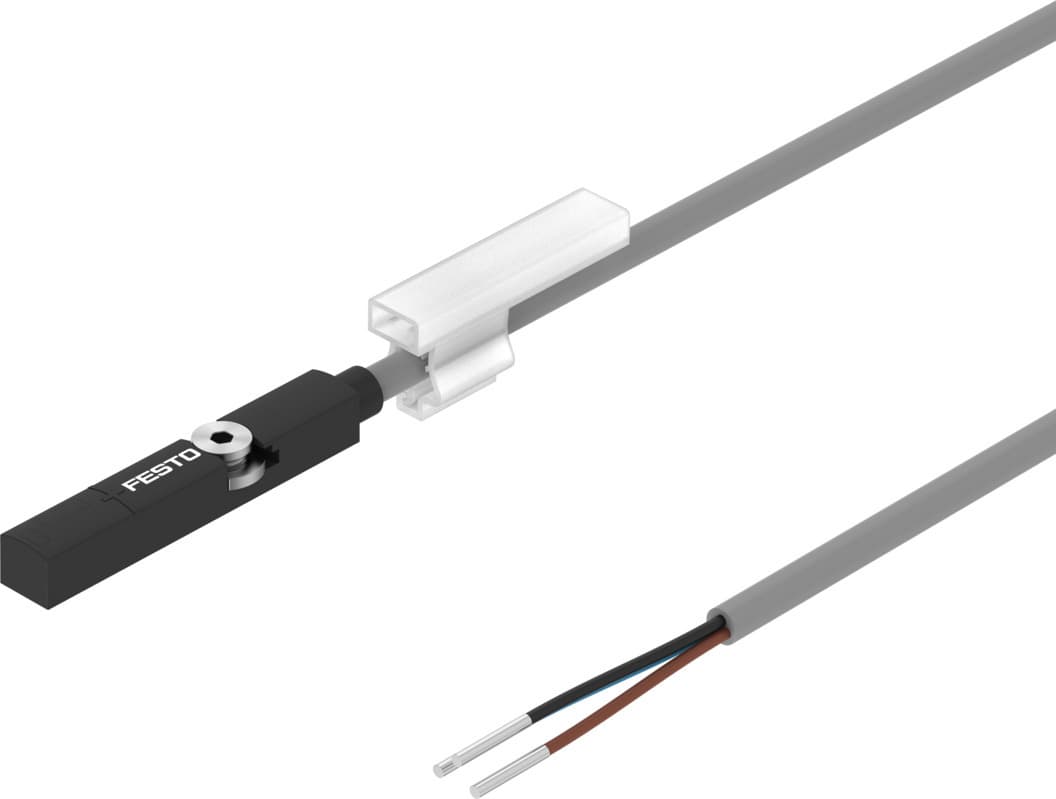

Product Model
smat-8m-u-e-2,5-oe
Selling Points
- 1High Accuracy Magnetic Measurement: The SMAT-8M-U-E-2.5-OE uses a 3D Hall sensor arrangement for precise magnetic measurement, ensuring accurate piston position detection.
- 2Wide Application Range: Suitable for various applications including object recognition, process monitoring, and object recognition in terminals and pressing operations.
- 3Analog Output: Provides an analogue voltage output proportional to the piston position, making it easy to integrate into control systems.
- 4Compact Design: Designed for T-slot installation, making it easy to insert and secure in place, ideal for space-constrained applications.
- 5Reliable Operation: Features a robust design with reverse polarity protection and overload immunity, ensuring reliable operation in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for T-slot | Symbol | 00997502 |
Certification | RCM compliance mark c UL us - Listed (OL) | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Certificate issuing authority | UL E232949 |
Note on materials | RoHS-compliant Halogen-free | Application note | https://www.festo.com/Drive-Sensor-Overview |
Measured variable | Position | Measuring principle | Magnetic Hall |
Sensing range | 52000μm | Ambient temperature | -40°C 80°C |
Typical sampling interval | 2ms | Max. travel speed | 3m/s |
Displacement resolution | 0.02mm | Repetition accuracy | 0.2mm |
Analog output | 0 - 10 V | Typical linearity error | ±1 mm |
Short-circuit protection | yes | Overload protection | Available |
Output signal | Analog | DC operating voltage range | 15V 30V |
Residual ripple | 10 % | Idle current | 12mA |
Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Cable |
Electrical connection 1, connection technology | Open end | Electrical connection 1, number of pins/wires | 3 |
Connection outlet orientation | Longitudinal | Connector cable test conditions | Flexural strength: as per Festo standard Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm |
Cable length | 2.5m | Cable characteristic | Suitable for energy chains/robot applications |
Color cable sheath | Gray | Material of cable sheath | TPE-U(PUR) |
Type of mounting | Screwed tightly Can be inserted in slot from above | Mounting position | Any |
Product weight | 14.6g | Housing material | PA-reinforced High-alloy stainless steel |
Status indicator | LED red, green | Ambient temperature with flexible cable installation | -20°C 70°C |
Degree of protection | IP65 IP68 | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 4 according to ISO 14644-1 |
Manufacturer ID | 8200152 |
