Product Model

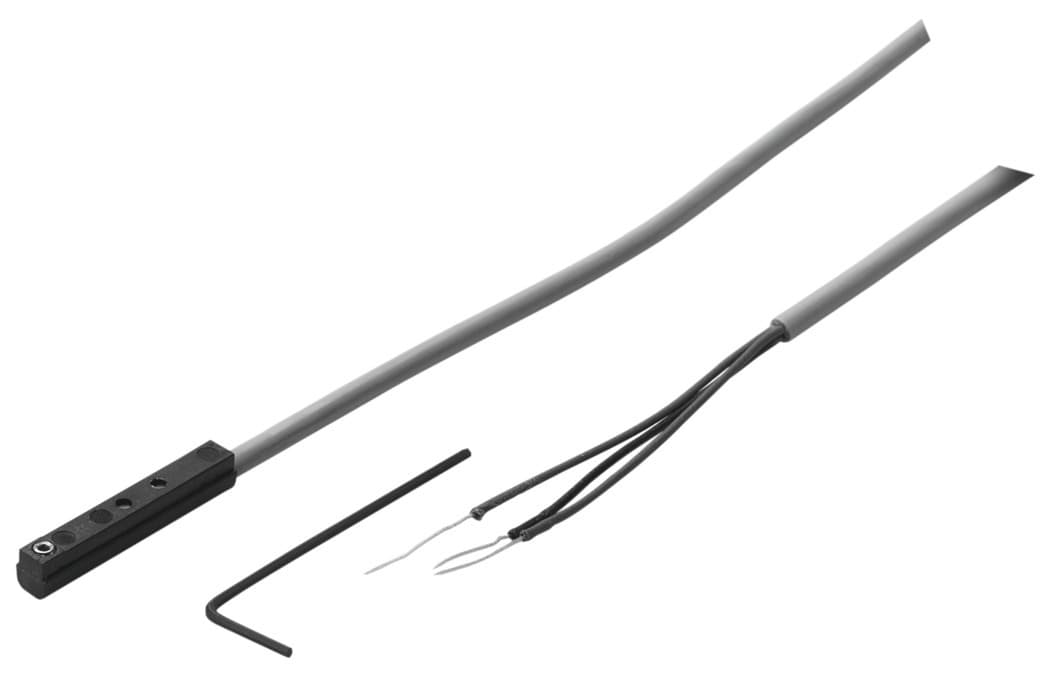

sme-10-kl-led-24
Selling Points
- 1The SME-10-KL-LED-24 proximity sensor offers a repetition accuracy of ±0.1 mm, ensuring precise positioning in your applications.
- 2Constructed with high-alloy stainless steel and PPS housing, this sensor is robust and resistant to harsh environments, providing long-lasting performance.
- 3Compatible with operating voltages of 12-27 V AC and DC, this sensor can be easily integrated into various systems, making it versatile for different applications.
- 4Featuring IP65 and IP67 degrees of protection, the SME-10-KL-LED-24 ensures reliable operation even in challenging conditions, such as dust and moisture.
- 5Designed for round slots, this sensor can be clamped in place or inserted lengthwise, making installation straightforward and efficient.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for round slot | Conforms to standard | EN 60947-5-2 |
Symbol | 00991620 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant | Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
Measured variable | Position | Measuring principle | Magnetic reed |
Ambient temperature | -20°C 70°C | Repetition accuracy | 0.2mm |
Switching output | Contact-based, bipolar | Switching element function | N/O contact |
On time | 0.6ms | Switch-off time | 0.05ms |
Max. switching frequency | 500Hz | Max. output current | 100mA |
Max. switching capacity DC | 1W | Voltage drop | 0V |
Short-circuit protection | no | Overload protection | Not available |
Operating voltage range AC | 12V 27V | DC operating voltage range | 12V 27V |
Reverse polarity protection | no | Electrical connection 1, connection type | Cable |
Electrical connection 1, connection technology | Open end | Electrical connection 1, number of pins/wires | 3 |
Connection outlet orientation | Longitudinal | Cable length | 2.5m |
Color cable sheath | Gray | Material of cable sheath | TPE-U(PUR) |
Type of mounting | Clamped in round slot Can be inserted in slot lengthwise | Tightening torque | 0.1Nm |
Mounting position | Any | Product weight | 20g |
Housing colour | Black | Housing material | PPS High-alloy stainless steel |
Switching status indication | LED yellow | Ambient temperature with flexible cable installation | -5°C 70°C |
Degree of protection | IP65 IP67 | Insulation voltage | 50V |
Surge resistance | 0.8kV | LABS (PWIS) conformity | VDMA24364-B2-L |
Contamination level | 3 | Manufacturer ID | 173210 |
