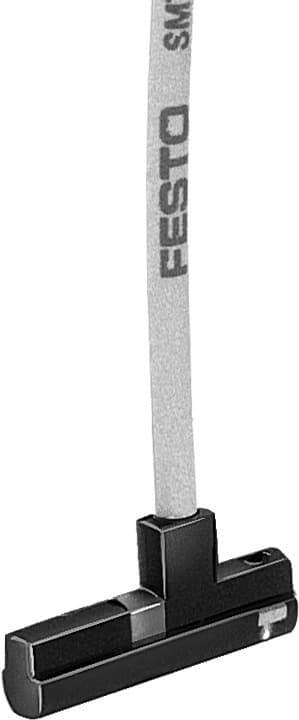

Product Model
sme-10-kq-led-24
Selling Points
- 1The SME-10-KQ-LED-24 is a well-tried component for safety-related applications, adhering to ISO 13849-1 standards and ensuring reliable performance in demanding environments.
- 2Equipped with a reed magnetic measurement principle, this proximity sensor offers precise detection and reliable switching values, ensuring accurate control in various applications.
- 3The sensor operates within a broad ambient temperature range of -20°C to 70°C and supports both AC and DC voltage ranges from 12 to 27 volts, making it versatile for diverse industrial settings.
- 4With switch on and off times of less than 0.6 ms and 0.05 ms respectively, the SME-10-KQ-LED-24 ensures quick and reliable switching, ideal for high-speed applications.
- 5Built with high-alloyed stainless steel and PPS housing materials, this proximity sensor is designed to withstand harsh industrial conditions, including IP65 and IP67 protection categories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for round slot | Conforms to standard | EN 60947-5-2 |
Symbol | 00991620 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant | Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
Measured variable | Position | Measuring principle | Magnetic reed |
Ambient temperature | -20°C 70°C | Repetition accuracy | 0.2mm |
Switching output | Contact-based, bipolar | Switching element function | N/O contact |
On time | 0.6ms | Switch-off time | 0.05ms |
Max. switching frequency | 500Hz | Max. output current | 100mA |
Max. switching capacity DC | 1W | Voltage drop | 0V |
Short-circuit protection | no | Overload protection | Not available |
Operating voltage range AC | 12V 27V | DC operating voltage range | 12V 27V |
Reverse polarity protection | no | Electrical connection 1, connection type | Cable |
Electrical connection 1, connection technology | Open end | Electrical connection 1, number of pins/wires | 3 |
Connection outlet orientation | Transverse | Cable length | 2.5m |
Color cable sheath | Gray | Material of cable sheath | TPE-U(PUR) |
Type of mounting | Clamped in round slot Can be inserted in slot lengthwise | Tightening torque | 0.1Nm |
Mounting position | Any | Product weight | 20g |
Housing colour | Black | Housing material | PPS High-alloy stainless steel |
Switching status indication | LED yellow | Ambient temperature with flexible cable installation | -5°C 70°C |
Degree of protection | IP65 IP67 | Insulation voltage | 50V |
Surge resistance | 0.8kV | LABS (PWIS) conformity | VDMA24364-B2-L |
Contamination level | 3 | Manufacturer ID | 173211 |
Specifications may be subject to change without notice
