Product Model

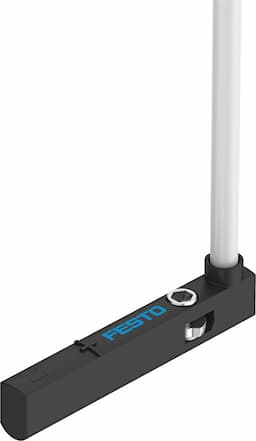

sme-10m-ds-24v-e-0,3-q-m8d
Selling Points
- 1The SME-10M-DS-24V-E-0,3-Q-M8D proximity sensor offers a switching output repetition accuracy of ±0.1 mm, ensuring precise measurements in industrial automation.
- 2This sensor is designed to be oil-resistant, making it suitable for harsh environments and applications where exposure to oil is a concern.
- 3The sensor operates within a wide ambient temperature range of -40°C to 70°C, ensuring reliable performance in various industrial conditions.
- 4The SME-10M-DS-24V-E-0,3-Q-M8D conforms to the EN 60947-5-2 standard and carries the CE mark for EMC compliance, ensuring it meets EU directives.
- 5The sensor uses a reed magnetic measuring principle, providing reliable and consistent measurements in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for round slot | Conforms to standard | EN 60947-5-2 |
Symbol | 00991619 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Special features | Oil-resistant | Note on materials | RoHS-compliant Halogen-free |
Application note | Support / actuator-sensor overview "The right sensor for the actuator" | Measured variable | Position |
Measuring principle | Magnetic reed | Ambient temperature | -40°C 70°C |
Repetition accuracy | 0.2mm | Switching output | Contact-based, bipolar |
Switching element function | N/O contact | On time | 1.2ms |
Switch-off time | 1ms | Max. switching frequency | 50Hz |
Max. output current | 300mA | Max. output current in mounting kits | 50mA |
Min. switching capacity AC | 9VA | Max. switching capacity DC | 9W |
Max. switching capacity DC in mounting kits | 1.5W | Max. switching capacity AC in mounting kits | 1.5VA |
Voltage drop | 1.5V | Short-circuit protection | no |
Overload protection | Not available | Rated operating voltage DC | 24V |
Operating voltage range AC | 5V 30V | DC operating voltage range | 5V 30V |
Reverse polarity protection | no | Electrical connection 1, connection type | Cable with plug |
Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 3 |
Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | 00991155 |
Connection outlet orientation | Transverse | Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm |
Cable length | 0.3m | Cable characteristic | Suitable for energy chains/robot applications |
Material of cable sheath | TPE-U(PUR) | Type of mounting | Screwed tightly Can be inserted in slot from above |
Max. tightening torque | 0.4Nm | Mounting position | Any |
Product weight | 6.7g | Housing material | PA-reinforced High-alloy stainless steel |
Switching status indication | LED yellow | Ambient temperature with flexible cable installation | -20°C 70°C |
Degree of protection | IP65 IP68 | LABS (PWIS) conformity | VDMA24364-B2-L |
Manufacturer ID | 551368 |
Specifications may be subject to change without notice
