Product Model

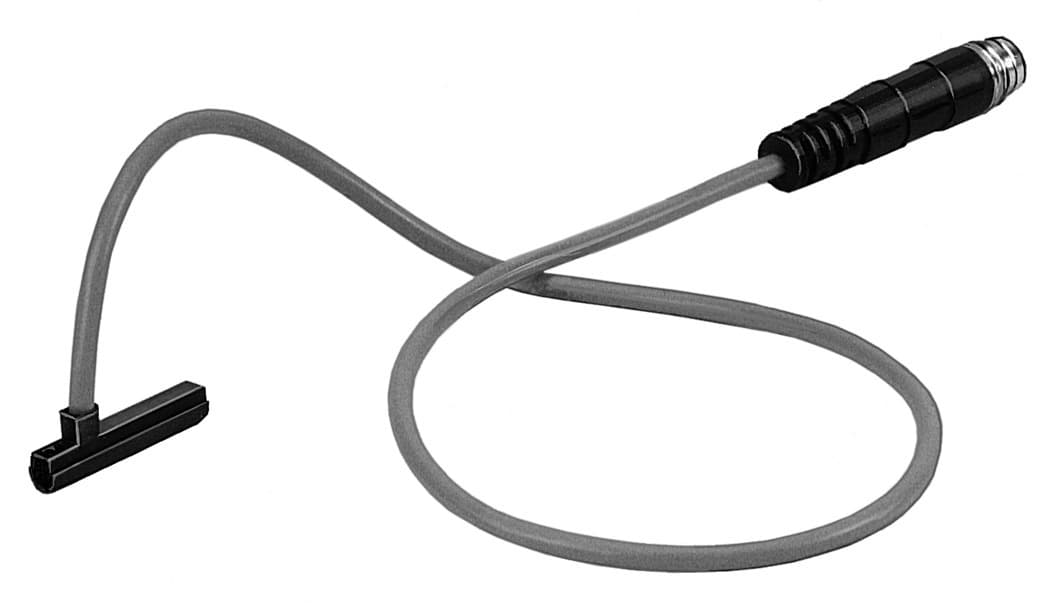

sme-10-sq-led-24
Selling Points
- 1The SME-10-SQ-LED-24 proximity sensor offers a high repetition accuracy of 0.2 mm, ensuring precise measurements in various applications.
- 2This sensor operates within an ambient temperature range of -20 °C to 70 °C and supports both AC and DC voltages from 12 V to 27 V, making it versatile for different environments.
- 3The sensor is designed to be clamped in a C-slot and features a durable housing made from materials like PPS, TPE-U(PU), high-alloyed stainless steel, and brass, ensuring long-lasting performance.
- 4With a maximum switching frequency of 500 Hz, the SME-10-SQ-LED-24 is suitable for high-speed applications that require rapid switching.
- 5The sensor conforms to the EU EMC Directive and RoHS Directive, ensuring it meets stringent safety and environmental standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for round slot | Conforms to standard | EN 60947-5-2 |
Symbol | 00991619 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant | Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
Measured variable | Position | Measuring principle | Magnetic reed |
Ambient temperature | -20°C 70°C | Repetition accuracy | 0.2mm |
Switching output | Contact-based, bipolar | Switching element function | N/O contact |
On time | 0.6ms | Switch-off time | 0.05ms |
Max. switching frequency | 500Hz | Max. output current | 100mA |
Max. switching capacity DC | 1W | Voltage drop | 0V |
Short-circuit protection | no | Overload protection | Not available |
Operating voltage range AC | 12V 27V | DC operating voltage range | 12V 27V |
Reverse polarity protection | no | Electrical connection 1, connection type | Cable with plug |
Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 3 |
Electrical connection for input 1, connection pattern | 00991155 | Connection outlet orientation | Transverse |
Cable length | 0.3m | Color cable sheath | Gray |
Material of cable sheath | TPE-U(PUR) | Type of mounting | Clamped in round slot Can be inserted in slot lengthwise |
Tightening torque | 0.1Nm | Mounting position | Any |
Product weight | 5g | Housing colour | Black |
Housing material | Brass, nickel-plated PPS TPE-U(PU) High-alloy stainless steel | Switching status indication | LED yellow |
Ambient temperature with flexible cable installation | -5°C 70°C | Degree of protection | IP65 IP67 |
Insulation voltage | 50V | Surge resistance | 0.8kV |
LABS (PWIS) conformity | VDMA24364-B2-L | Contamination level | 3 |
Manufacturer ID | 173213 |
Specifications may be subject to change without notice
