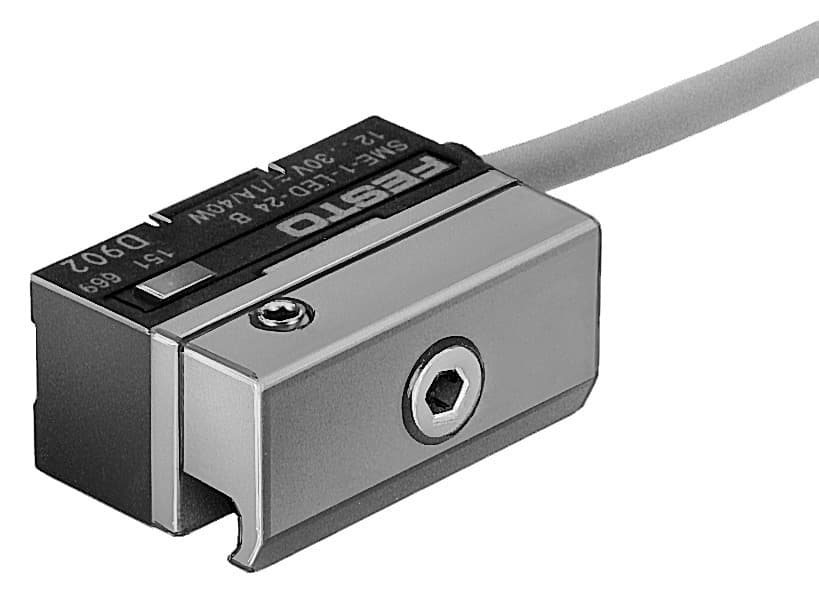

Product Model
sme-1-led-24-b
Selling Points
- 1The SME-1-LED-24-B offers a repetition accuracy of 0.2 mm, ensuring precise positioning in your industrial applications.
- 2Utilize the magneto-inductive measuring principle for reliable and robust position detection.
- 3With an IP67 rating, this sensor is designed to withstand harsh environments and maintain its performance in challenging conditions.
- 4Easily mount the SME-1-LED-24-B via accessories, providing flexibility in installation and integration.
- 5The yellow LED indicator provides clear visual feedback on the sensor's status, enhancing operational efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | Block design | Symbol | 00991145 |
Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
Measured variable | Position | Measuring principle | Magnetic reed |
Ambient temperature | -20°C 70°C | Repetition accuracy | 0.2mm |
Switching output | Contact-based, bipolar | Switching element function | N/O contact |
On time | 0.5ms | Max. switching frequency | 500Hz |
Max. output current | 1000mA | Min. switching capacity AC | 27VA |
Max. switching capacity DC | 27W | Short-circuit protection | no |
Overload protection | Not available | Operating voltage range AC | 12V 27V |
DC operating voltage range | 12V 27V | Reverse polarity protection | no |
Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
Cable length | 2.5m | Color cable sheath | Gray |
Material of cable sheath | TPE-U(PUR) | Type of mounting | With accessories |
Mounting position | Any | Product weight | 110g |
Housing colour | Black | Housing material | Epoxy resin PET-reinforced Steel Steel, galvanized Die-cast zinc |
Switching status indication | LED yellow | Ambient temperature with flexible cable installation | -5°C 70°C |
Degree of protection | IP67 | LABS (PWIS) conformity | VDMA24364-B2-L |
Manufacturer ID | 151669 |
