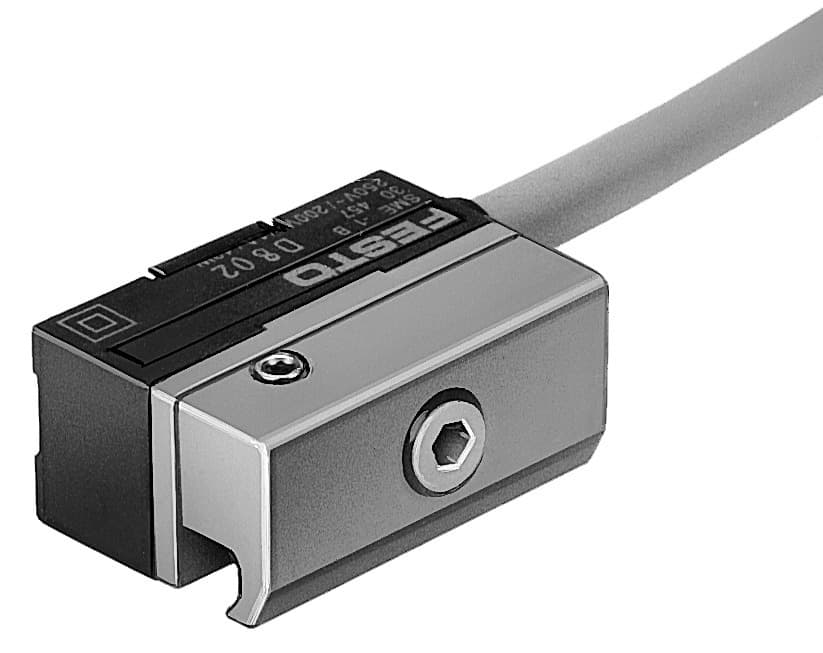

Product Model
sme-1-s6-c
Selling Points
- 1The SME-1-S6-C proximity sensor offers a repetition accuracy of 0.2 mm, ensuring precise measurements in various industrial applications.
- 2Utilizing a magnetic reed measuring principle, this sensor provides reliable detection of objects, even in challenging environments.
- 3The sensor operates effectively within an ambient temperature range of -50°C to 120°C, making it suitable for diverse industrial settings.
- 4With an IP67 rating, the SME-1-S6-C is highly resistant to dust and water, ensuring it can withstand harsh industrial conditions.
- 5The sensor conforms to DIN EN 60947-5-2 and meets EU EMC, Low Voltage, and RoHS directives, ensuring compliance with international safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | Block design | Conforms to standard | EN 60947-5-2 |
Symbol | 00991624 | CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions To UK instructions for electrical equipment | Note on materials | RoHS-compliant |
Measured variable | Position | Measuring principle | Magnetic reed |
Ambient temperature | -50°C 120°C | Repetition accuracy | 0.2mm |
Switching output | Contact-based, bipolar | Switching element function | N/O contact |
On time | 0.5ms | Switch-off time | 0.03ms |
Max. switching frequency | 500Hz | Max. output current | 1000mA |
Min. switching capacity AC | 40VA | Max. switching capacity DC | 40W |
Voltage drop | 0V | Residual current | 0mA |
Short-circuit protection | no | Overload protection | Not available |
Operating voltage range AC | 0V 250V | DC operating voltage range | 0V 200V |
Reverse polarity protection | no | Electrical connection 1, connection type | Cable |
Electrical connection 1, connection technology | Open end | Electrical connection 1, number of pins/wires | 2 |
Connection outlet orientation | Longitudinal | Cable length | 2.5m |
Color cable sheath | Gray | Material of cable sheath | TPE-S |
Type of mounting | With accessories | Tightening torque | 2.9Nm |
Mounting position | Any | Product weight | 130g |
Housing colour | Black | Housing material | Epoxy resin PC PET Steel TPE-O Die-cast zinc |
Ambient temperature with flexible cable installation | -40°C 120°C | Degree of protection | IP67 |
Insulation voltage | 250V | Surge resistance | 4kV |
LABS (PWIS) conformity | VDMA24364-B2-L | Contamination level | 3 |
Manufacturer ID | 151670 |
Specifications may be subject to change without notice
