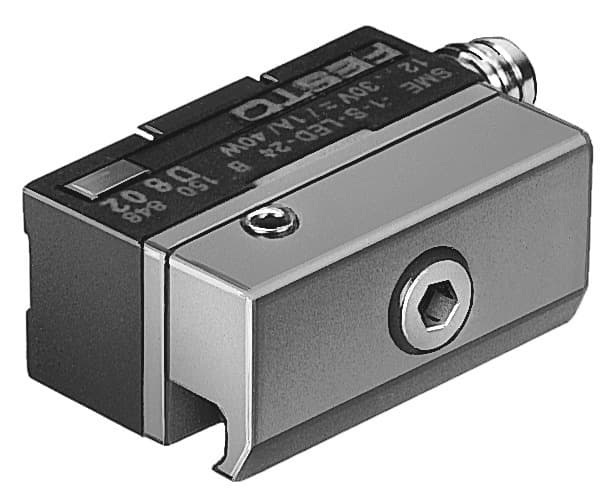

Festo sme-1-s-led-24-b

Selling Points

  • 1Magnetic reed technology for precise position detection.
  • 2Block design for easy installation and mounting.
  • 3Operates within a wide voltage range of 12-27V.
  • 4IP67 protection against dust and water.
  • 5Includes a yellow LED for switching status indication.
Product Details
sme-1-s-led-24-b
Festo

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Design
Block design
Symbol
00991148
Certification
RCM compliance mark
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
UKCA marking (see declaration of conformity)
To UK instructions for EMC To UK RoHS instructions
Note on materials
RoHS-compliant
Measured variable
Position
Measuring principle
Magnetic reed
Ambient temperature
-20°C 70°C
Repetition accuracy
0.2mm
Switching output
Contact-based, bipolar
Switching element function
N/O contact
On time
0.5ms
Max. output current
1000mA
Min. switching capacity AC
27VA
Max. switching capacity DC
27W
Short-circuit protection
no
Overload protection
Not available
Operating voltage range AC
12V 27V
DC operating voltage range
12V 27V
Reverse polarity protection
no
Electrical connection 1, connection type
Plug
Electrical connection 1, connection technology
M8x1 A-coded as per EN 61076-2-104
Electrical connection 1, number of pins/wires
3
Electrical connection for input 1, connection pattern
00991155
Connection outlet orientation
Longitudinal
Type of mounting
With accessories
Mounting position
Any
Product weight
45g
Housing colour
Black
Housing material
Epoxy resin PET Steel Steel, galvanized Die-cast zinc
Switching status indication
LED yellow
Ambient temperature with flexible cable installation
-5°C 70°C
Degree of protection
IP67
LABS (PWIS) conformity
VDMA24364-B2-L
Manufacturer ID
150851

Specifications may be subject to change without notice
