Product Model

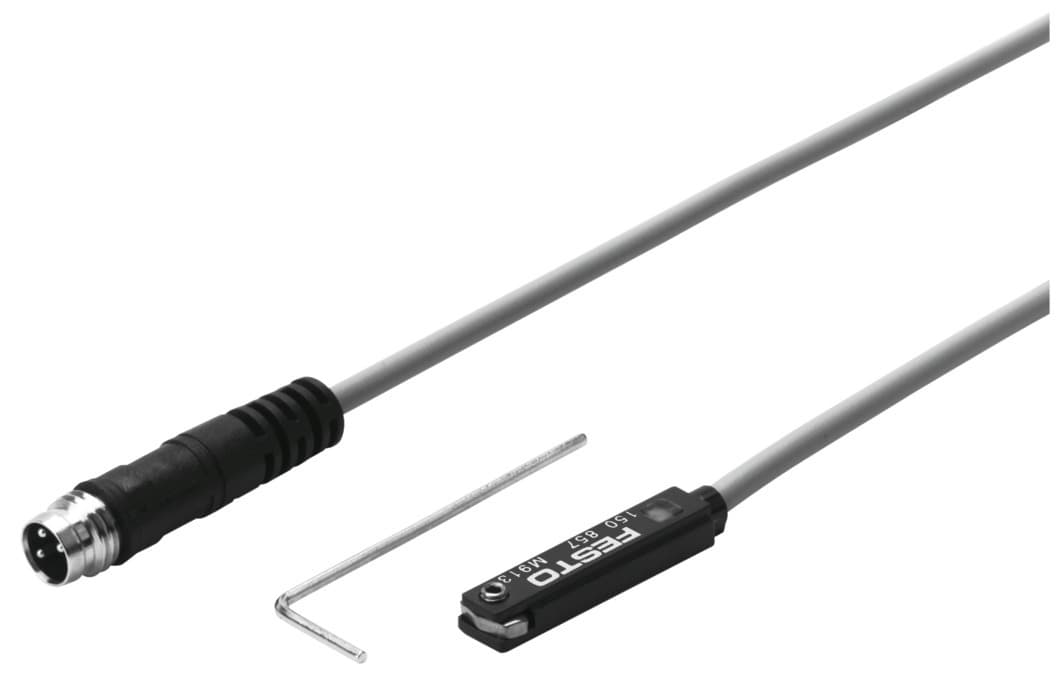

sme-8-s-led-24
Selling Points
- 1High Accuracy: Repetition accuracy of 0.2 mm and reproducibility of switching value +/-0.1 mm.
- 2Reliable Operation: Ambient temperature range of -40 °C to 70 °C and IP67 degree of protection.
- 3Easy Installation: Clamped in T-slot or insertable in the slot lengthwise, with a tightening torque of 0.2 Nm.
- 4Compliant with Directives: Conforms to EN 60947-5-2 and CE marked, adhering to EU and UK EMC and RoHS directives.
- 5Versatile Connectivity: M8x1, A-coded connector system with a 3-pin configuration and 0.3 m cable with plug.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for T-slot | Conforms to standard | EN 60947-5-2 |
Symbol | 00991148 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant | Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
Measured variable | Position | Measuring principle | Magnetic reed |
Ambient temperature | -40°C 70°C | Repetition accuracy | 0.2mm |
Switching output | Contact-based, bipolar | Switching element function | N/O contact |
Reproducibility of switching value | +/- 0.1 mm | On time | 0.5ms |
Switch-off time | 0.03ms | Max. switching frequency | 800Hz |
Max. output current | 500mA | Min. switching capacity AC | 10VA |
Max. switching capacity DC | 10W | Inductive protective circuit | Adapted to MZ, MY and ME coils |
Short-circuit protection | no | Overload protection | Not available |
Operating voltage range AC | 12V 30V | DC operating voltage range | 12V 30V |
Reverse polarity protection | no | Electrical connection 1, connection type | Plug |
Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 3 |
Electrical connection for input 1, connection pattern | 00991155 | Connection outlet orientation | Longitudinal |
Material of pin contacts | Brass Nickel-plated | Material of plug housing | TPE-U(PU) |
Cable length | 0.3m | Color cable sheath | Gray |
Material of cable sheath | TPE-U(PUR) | Type of mounting | Clamped in T slot Can be inserted in slot lengthwise |
Tightening torque | 0.2Nm | Mounting position | Any |
Product weight | 8g | Housing colour | Black |
Housing material | Epoxy resin PC PET High-alloy stainless steel | Switching status indication | LED yellow |
Ambient temperature with flexible cable installation | -5°C 70°C | Degree of protection | IP67 |
Insulation voltage | 50V | Surge resistance | 0.8kV |
LABS (PWIS) conformity | VDMA24364-B2-L | Contamination level | 3 |
Manufacturer ID | 150857 |
Specifications may be subject to change without notice
