Product Model

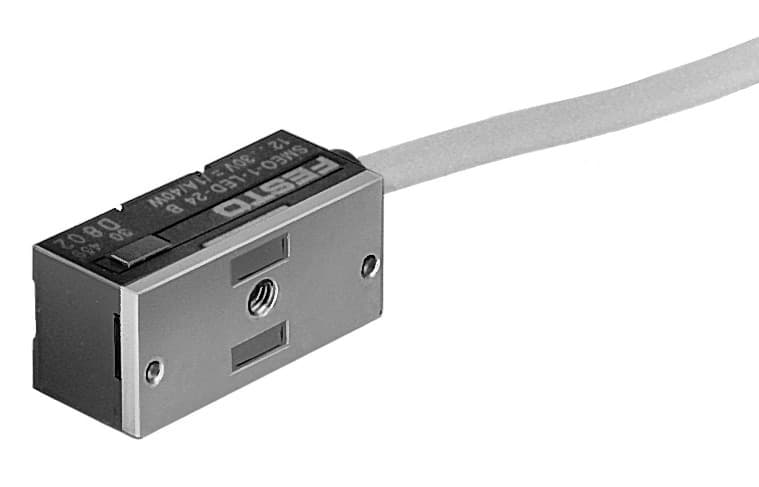

smeo-1-led-230-b
Selling Points
- 1High Accuracy and Reliability: The Festo SMEO-1-LED-230-B proximity sensor offers high accuracy with a magnetic reed measuring principle, ensuring reliable performance in various industrial settings.
- 2IP67 Protection: Equipped with IP67 protection, this sensor is designed to withstand harsh environments, making it suitable for applications where dust and moisture are present.
- 3Wide Operating Voltage Range: The sensor operates within a wide voltage range of 5-200 V DC and 5-250 V AC, providing flexibility in different electrical configurations.
- 4Fast Switching Times: With a switch-on time of 0.5 ms and a switch-off time of 0.03 ms, the SMEO-1-LED-230-B ensures quick and efficient switching operations.
- 5Compliance with Standards: The sensor conforms to the EN 60947-5-2 standard and carries CE and RCM marks, ensuring compliance with EU directives and regulations for electrical equipment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | Block design | Conforms to standard | EN 60947-5-2 |
Symbol | 00991624 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions To UK instructions for electrical equipment |
Note on materials | RoHS-compliant | Measured variable | Position |
Measuring principle | Magnetic reed | Ambient temperature | -20°C 70°C |
Repetition accuracy | 0.2mm | Switching output | Contact-based, bipolar |
Switching element function | N/O contact | On time | 0.5ms |
Switch-off time | 0.03ms | Max. switching frequency | 500Hz |
Max. output current AC | 250mA | Max. output current DC | 120mA |
Min. switching capacity AC | 40VA | Max. switching capacity DC | 40W |
Voltage drop | 4.5V | Residual current | 0mA |
Short-circuit protection | no | Overload protection | Not available |
Operating voltage range AC | 5V 250V | DC operating voltage range | 5V 200V |
Reverse polarity protection | no | Electrical connection 1, connection type | Cable |
Electrical connection 1, connection technology | Open end | Electrical connection 1, number of pins/wires | 2 |
Connection outlet orientation | Longitudinal | Cable length | 2.5m |
Color cable sheath | Gray | Material of cable sheath | PVC |
Type of mounting | With accessories | Tightening torque | 2.9Nm |
Mounting position | Any | Product weight | 100g |
Housing colour | Black | Housing material | Epoxy resin PC PET Steel TPE-O Die-cast zinc |
Switching status indication | LED yellow | Ambient temperature with flexible cable installation | -5°C 70°C |
Degree of protection | IP67 | Surge resistance | 4kV |
LABS (PWIS) conformity | VDMA24364-B2-L | Contamination level | 3 |
Manufacturer ID | 151671 |
Specifications may be subject to change without notice
