Product Model

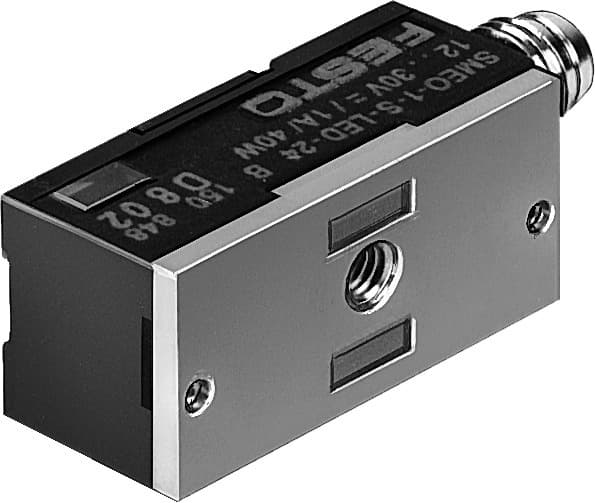

smeo-1-s-led-24-b
Selling Points
- 1The SMEO-1-S-LED-24-B proximity sensor offers high accuracy and reliability, making it suitable for various industrial applications.
- 2Utilizes a magnetic reed measuring principle for precise detection, ensuring reliable operation in different environments.
- 3Features IP67 protection, making it resistant to dust and water, ideal for harsh industrial conditions.
- 4The sensor has a block design with a weight of 20 grams, making it compact and easy to integrate into systems.
- 5Equipped with a yellow LED for switching status indication, providing visual feedback on the sensor's operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | Block design | Symbol | 00991148 |
Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
Measured variable | Position | Measuring principle | Magnetic reed |
Ambient temperature | -20°C 70°C | Repetition accuracy | 0.2mm |
Switching output | Contact-based, bipolar | Switching element function | N/O contact |
On time | 0.5ms | Max. output current | 1000mA |
Min. switching capacity AC | 27VA | Max. switching capacity DC | 27W |
Short-circuit protection | no | Overload protection | Not available |
Operating voltage range AC | 12V 27V | DC operating voltage range | 12V 27V |
Reverse polarity protection | no | Electrical connection 1, connection type | Plug |
Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 3 |
Electrical connection for input 1, connection pattern | 00991155 | Connection outlet orientation | Longitudinal |
Type of mounting | With accessories | Mounting position | Any |
Product weight | 20g | Housing colour | Black |
Housing material | Epoxy resin PET Steel Die-cast zinc | Switching status indication | LED yellow |
Ambient temperature with flexible cable installation | -5°C 70°C | Degree of protection | IP67 |
LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 150848 |
Specifications may be subject to change without notice
