Product Model
smeo-4u-k-led 230
Selling Points
- 1The SMEO-4U-K-LED 230 proximity sensor offers a repetition accuracy of 0.2 mm, ensuring precise measurements in various environments.
- 2Equipped with magnetic reed technology, this sensor provides reliable and consistent performance across a wide range of temperatures (-20 °C to 60 °C).
- 3With an IP67 rating, the SMEO-4U-K-LED 230 is designed to withstand harsh industrial conditions, including dust and water ingress.
- 4The sensor features a round design and can be mounted in any position, making it adaptable to various applications.
- 5Meets international standards including DIN EN 60947-5-2, RCM, CE, and UKCA markings, ensuring compliance with EMC and low voltage directives.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | Round | Conforms to standard | DIN EN 60947-5-2 |
Symbol | 00992153 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions To UK instructions for electrical equipment |
Measuring principle | Magnetic reed | Ambient temperature | -20°C 60°C |
Repetition accuracy | 0.2mm | Switching output | Contact-based, bipolar Without LED function |
Switching element function | N/O contact | On time | 2ms |
Switch-off time | 0.05ms | Max. switching frequency | 500Hz |
Max. output current AC | 250mA | Max. output current DC | 120mA |
Min. switching capacity AC | 10VA | Max. switching capacity DC | 10W |
Voltage drop | 4.5V | Short-circuit protection | no |
Overload protection | Not available | Operating voltage range AC | 12V 250V |
DC operating voltage range | 12V 250V | Reverse polarity protection | no |

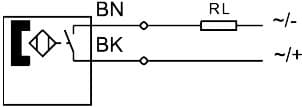

Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
Electrical connection 1, number of pins/wires | 2 | Connection outlet orientation | Longitudinal |
Cable length | 2.5m | Material of cable sheath | PVC |
Type of mounting | With accessories | Tightening torque | 0.8Nm |
Mounting position | Any | Product weight | 70g |
Housing material | PET TPE-O | Switching status indication | LED yellow |
Degree of protection | IP67 | Surge resistance | 4kV |
LABS (PWIS) conformity | VDMA24364-B2-L | Contamination level | 3 |
Manufacturer ID | 150011 |
Specifications may be subject to change without notice
