Product Model

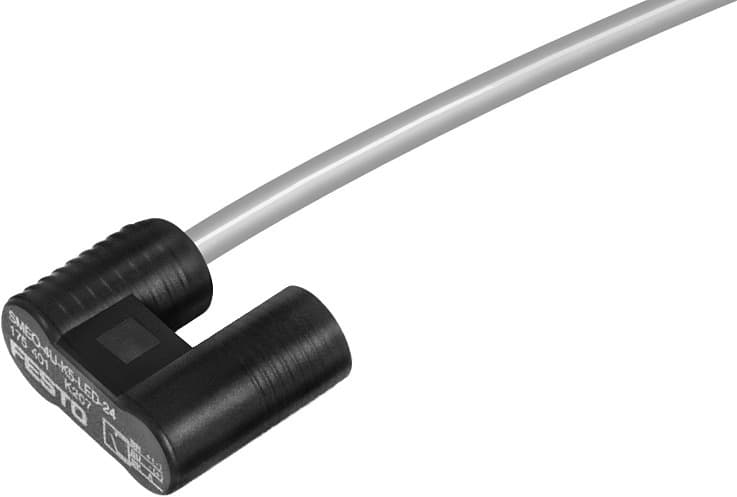

smeo-4u-k-led-24
Selling Points
- 1High Accuracy and Repetition: The SMEO-4U-K-LED-24 offers a high repetition accuracy of 0.2 mm, ensuring precise detection and reliable performance in industrial settings.
- 2Magnetic Reed Principle: Utilizing a magnetic reed principle, this proximity sensor provides robust and consistent measurements, making it suitable for a wide range of applications.
- 3IP67 Protection: With an IP67 rating, the SMEO-4U-K-LED-24 is designed to withstand harsh environments, ensuring it remains operational even in challenging conditions.
- 4LED Status Indicator: The yellow LED status indicator provides clear visual feedback on the sensor's activation, enhancing user experience and ease of use.
- 5Versatile Operating Range: Operating within a temperature range of -20 °C to 60 °C and a voltage range of 12 V to 27 V, this sensor is adaptable to various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | Round | Symbol | 00991145 |
Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Measuring principle | Magnetic reed |
Ambient temperature | -20°C 60°C | Repetition accuracy | 0.2mm |
Switching output | Contact-based, bipolar | Switching element function | N/O contact |
On time | 0.5ms | Switch-off time | 0.03ms |
Max. switching frequency | 800Hz | Max. output current | 500mA |
Max. switching capacity DC | 10W | Inductive protective circuit | Adapted to MZ, MY and ME coils |
Short-circuit protection | no | DC operating voltage range | 12V 27V |
Residual ripple | 10 % | Reverse polarity protection | no |
Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
Cable length | 2.5m | Color cable sheath | Gray |
Material of cable sheath | TPE-U(PUR) | Type of mounting | With accessories |
Mounting position | Any | Product weight | 70g |
Housing material | PET | Switching status indication | LED yellow |
Ambient temperature with flexible cable installation | -5°C 60°C | Degree of protection | IP67 |
LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 36198 |
Specifications may be subject to change without notice
