Product Model

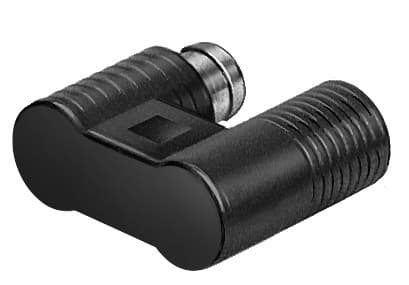

smeo-4u-s-led-24 b
Selling Points
- 1High Accuracy and Durability: The Festo SMEO-4U-S-LED-24 B proximity sensor offers high accuracy and durability, making it suitable for various industrial applications.
- 2Magnetic Reed Contact: Equipped with a magnetic reed contact, this sensor provides reliable switching performance and long-lasting operation.
- 3LED Indication: The sensor features a yellow LED for switching status indication, ensuring easy monitoring of its operational status.
- 4IP67 Protection: Designed with an IP67 degree of protection, this sensor is resistant to dust and water, ensuring reliable performance in harsh environments.
- 5Versatile Connectivity: Available with a 3-pin M8 male connector, the SMEO-4U-S-LED-24 B offers flexible connectivity options for easy integration into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | Round | Symbol | 00991148 |
Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Measuring principle | Magnetic reed |
Ambient temperature | -20°C 60°C | Repetition accuracy | 0.2mm |
Switching output | Contact-based, bipolar | Switching element function | N/O contact |
On time | 0.5ms | Switch-off time | 0.03ms |
Max. switching frequency | 800Hz | Max. output current | 500mA |
Max. switching capacity DC | 10W | Inductive protective circuit | Adapted to MZ, MY and ME coils |
Short-circuit protection | no | DC operating voltage range | 12V 27V |
Residual ripple | 10 % | Reverse polarity protection | no |
Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 3 | Electrical connection for input 1, connection pattern | 00991155 |
Type of mounting | With accessories | Mounting position | Any |
Product weight | 6g | Housing material | PET |
Switching status indication | LED yellow | Degree of protection | IP67 |
LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 151526 |
Specifications may be subject to change without notice
