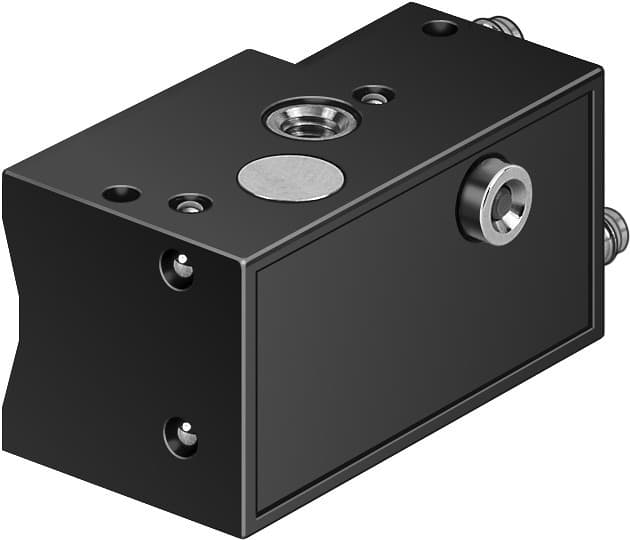

Festo SMPO-1-H-B Proximity Sensor: Reliable Automation Solution

Selling Points

1The Festo SMPO-1-H-B proximity sensor features a block design, making it easy to integrate into various automation systems. Its magnetic measuring principle ensures accurate object detection without physical contact.
2This sensor operates within a wide ambient temperature range of -15°C to +60°C, making it suitable for use in diverse industrial settings. It also offers protection against explosion zones 1 and 2 (ATEX).
3The SMPO-1-H-B has a 3/2-way valve function, normally closed, and can be mounted with through-holes or accessories. It is designed for compressed air operation according to ISO 8573-1:2010.
4The sensor boasts an optical switching status indication and is IP65-rated for protection against dust and water. It also meets LABS (PWIS) conformity standards.
5With a product weight of 14 grams and housing materials including brass, PA, and POM, the SMPO-1-H-B is both lightweight and durable. It is ideal for applications requiring high reliability and minimal maintenance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Design	Block design	Symbol	00991600
Explosion prevention and protection	Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)	Measuring principle	Magnetic
Operating pressure	2bar 6bar	Operating medium	Compressed air as per ISO 8573-1:2010 [6:4:4]
Information on operating and pilot media	Operation with oil lubrication not possible	Ambient temperature	-15°C 60°C
Reproducibility of switching value	+/- 0.2 mm	On time	30ms
Switch-off time	25ms	Type of mounting	With through-hole With accessories
Valve function	3/2	Pneumatic connection	Barbed fitting PK-3
Product weight	14g	Housing material	Brass PA POM
Switching status indication	Optical	Degree of protection	IP65
LABS (PWIS) conformity	VDMA24364-B2-L	Manufacturer ID	31008

Specifications may be subject to change without notice
