Product Model
smt-10g-ps-24v-e-0,3q-m8d
Selling Points

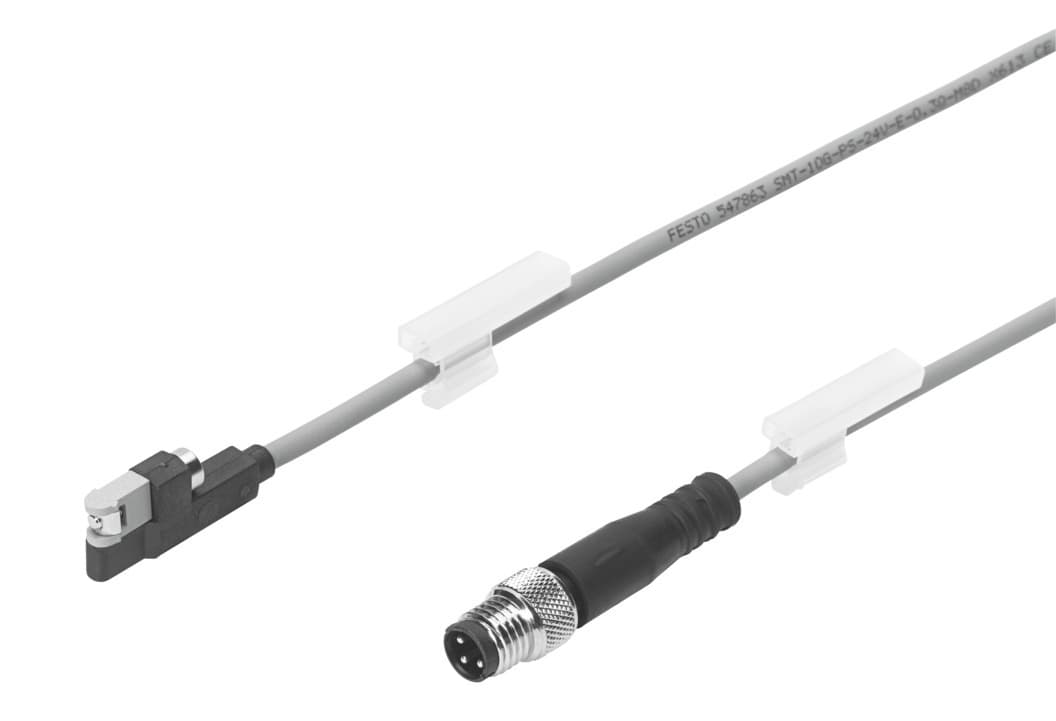

- 1The Festo SMT-10G-PS-24V-E-0,3Q-M8D is a magnetic, contactless proximity sensor designed for C-slot applications, ensuring precise detection without physical contact.
- 2This sensor is based on the standard EN 60947-5-2 and features a magnetoresistive measuring principle, providing reliable performance in various industrial environments.
- 3The SMT-10G-PS-24V-E-0,3Q-M8D is certified with RCM compliance and c UL us Listed (OL), ensuring safety and compliance with international standards.
- 4With an operating voltage range of 10 to 30 V DC and a maximum output current of 100 mA, this sensor is versatile and can be easily integrated into various automation systems.
- 5The sensor operates within an ambient temperature range of -20 to 70 °C, making it suitable for a wide range of industrial applications and environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for round slot | Based on norm | EN 60947-5-2 |
Symbol | 00991153 | Certification | RCM compliance mark c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Certificate issuing authority | UL E232949 | Note on materials | RoHS-compliant |
Application note | https://www.festo.com/Drive-Sensor-Overview | Measured variable | Position |
Measuring principle | Magneto-resistive | Ambient temperature | -20°C 70°C |
Repetition accuracy | 0.2mm | Switching output | PNP |
Switching element function | N/O contact | On time | 1ms |
Switch-off time | 1ms | Max. switching frequency | 150Hz |
Max. output current | 100mA | Max. switching capacity DC | 2.8W |
Voltage drop | 2V | Inductive protective circuit | Adapted to MZ, MY and ME coils |
Residual current | 0.01mA | Short-circuit protection | yes |
Overload protection | Available | Rated operating voltage DC | 24V |
DC operating voltage range | 10V 30V | Residual ripple | 10 % |
Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Cable with plug |
Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 1, number of pins/wires | 3 |
Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | 00991155 |
Connection outlet orientation | Transverse | Material of pin contacts | Brass, gold-plated |
Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm | Cable length | 0.3m |
Cable characteristic | Suitable for energy chains/robot applications | Color cable sheath | Gray |
Material of cable sheath | TPE-U(PU) | Type of mounting | Clamped in round slot Can be inserted in slot lengthwise |
Max. tightening torque | 0.6Nm | Mounting position | Any |
Product weight | 10g | Housing colour | Black |
Housing material | Aluminum PA-reinforced High-alloy stainless steel | Material of union nut | Brass, nickel-plated |
Switching status indication | LED yellow | Ambient temperature with flexible cable installation | -5°C 70°C |
Degree of protection | IP65 IP68 | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 4 according to ISO 14644-1 |
Manufacturer ID | 547863 |
Specifications may be subject to change without notice
