Product Model

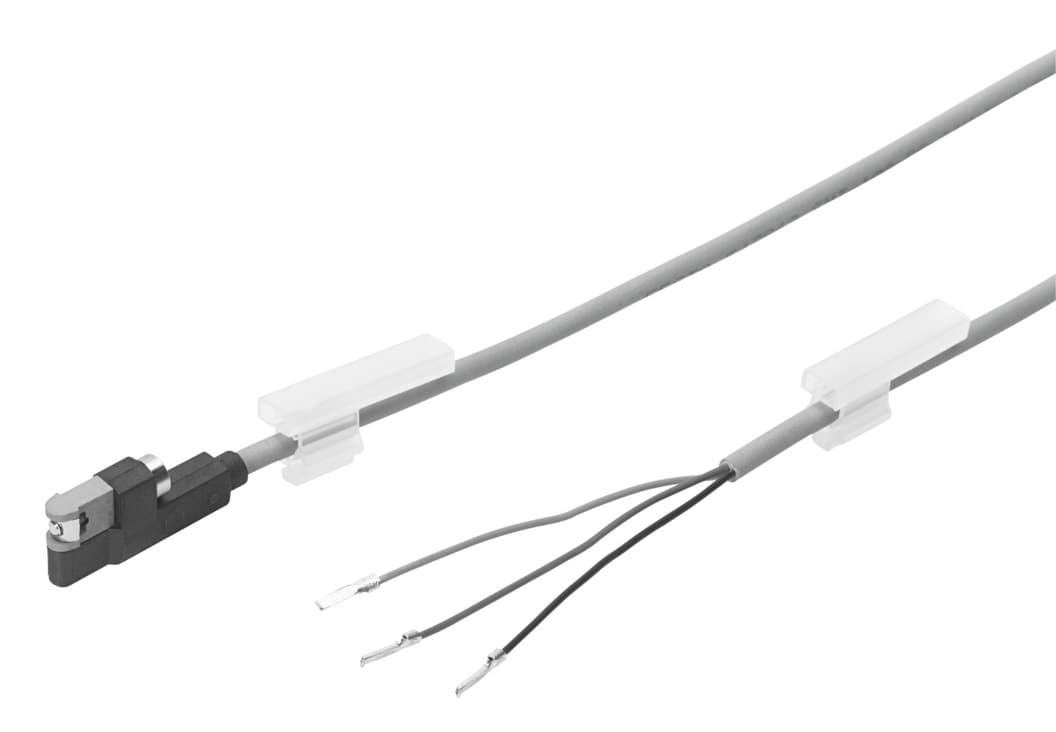

smt-10g-ps-24v-e-2,5q-oe
Selling Points
- 1High Precision Measurement: The SMT-10G-PS-24V-E-2,5Q-OE proximity sensor offers magnetoresistive technology for precise measurements, ensuring accurate detection in various industrial settings.
- 2Wide Operating Temperature Range: This sensor operates effectively within a temperature range of -20°C to 70°C, making it suitable for diverse environmental conditions.
- 3Durable Construction: With a housing made of PA-reinforced material and a TPE-U(PU) cable sheath, the sensor is designed to withstand harsh industrial environments.
- 4IP65 and IP68 Protection: The sensor features a protection class of IP65 and IP68, ensuring it is resistant to dust and water, enhancing its reliability in various applications.
- 5Easy Installation: The sensor can be easily installed by clamping it into a round slot or inserting it lengthwise into a slot, providing flexibility in mounting options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for round slot | Based on norm | EN 60947-5-2 |
Symbol | 00991152 | Certification | RCM compliance mark c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Certificate issuing authority | UL E232949 | Note on materials | RoHS-compliant |
Application note | https://www.festo.com/Drive-Sensor-Overview | Measured variable | Position |
Measuring principle | Magneto-resistive | Ambient temperature | -20°C 70°C |
Repetition accuracy | 0.2mm | Switching output | PNP |
Switching element function | N/O contact | On time | 1ms |
Switch-off time | 1ms | Max. switching frequency | 150Hz |
Max. output current | 100mA | Max. switching capacity DC | 2.8W |
Voltage drop | 2V | Inductive protective circuit | Adapted to MZ, MY and ME coils |
Residual current | 0.01mA | Short-circuit protection | yes |
Overload protection | Available | Rated operating voltage DC | 24V |
DC operating voltage range | 10V 30V | Residual ripple | 10 % |
Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Cable |
Electrical connection 1, connection technology | Open end | Electrical connection 1, number of pins/wires | 3 |
Connection outlet orientation | Transverse | Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm |
Cable length | 2.5m | Cable characteristic | Suitable for energy chains/robot applications |
Color cable sheath | Gray | Material of cable sheath | TPE-U(PU) |
Wire ends | Cable end sleeve | Type of mounting | Clamped in round slot Can be inserted in slot lengthwise |
Max. tightening torque | 0.6Nm | Mounting position | Any |
Product weight | 30g | Housing colour | Black |
Housing material | Aluminum PA-reinforced High-alloy stainless steel | Switching status indication | LED yellow |
Ambient temperature with flexible cable installation | -5°C 70°C | Degree of protection | IP65 IP68 |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 547862 |
Specifications may be subject to change without notice
