Product Model

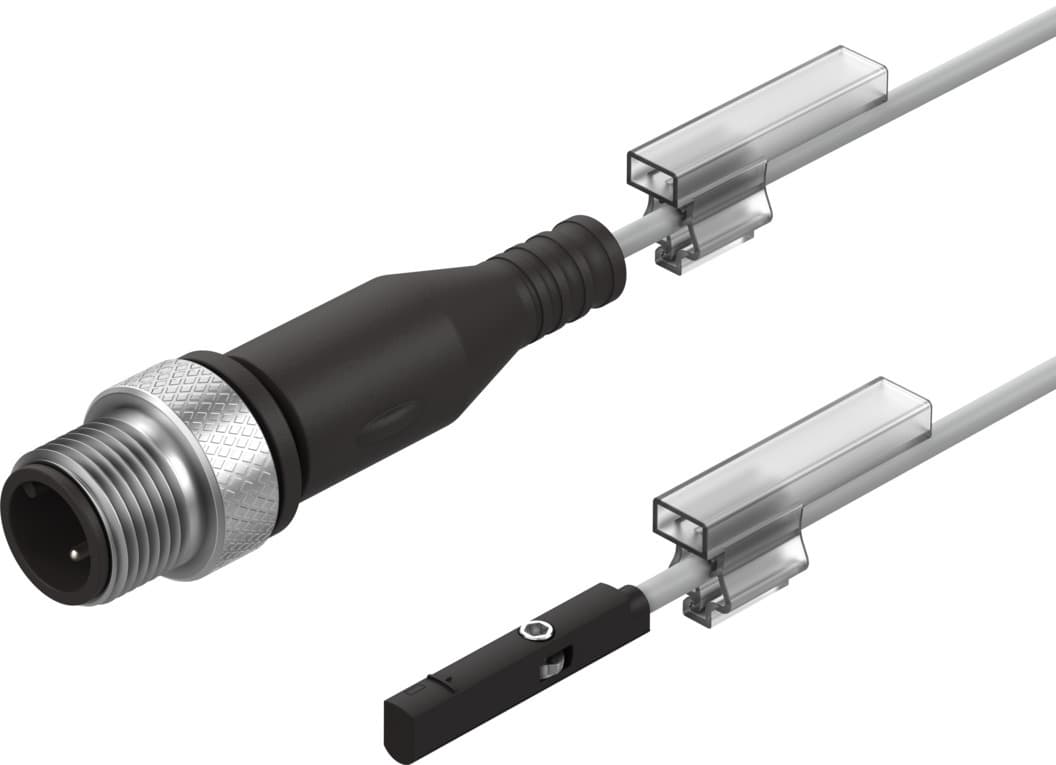

smt-10m-ps-24v-e-0,3-l-m12
Selling Points
- 1The SMT-10M-PS-24V-E-0,3-L-M12 proximity sensor offers a high repetition accuracy of 0.2 mm and a mean time to failure (MTTF) of 125 years, ensuring reliable performance in industrial settings.
- 2This sensor uses a magnetoresistive measuring principle, providing a contactless and magnetic design that is ideal for applications requiring minimal wear and tear.
- 3The sensor operates within an ambient temperature range of -40°C to 70°C, making it suitable for various industrial environments.
- 4The SMT-10M-PS-24V-E-0,3-L-M12 conforms to the EN 60947-5-2 standard and carries the RCM compliance mark, ensuring it meets international safety and performance standards.
- 5The sensor features an M12x1 A-coded connector with three pins, allowing for easy integration into various industrial automation systems. It also includes reverse polarity protection for all electrical connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for round slot | Conforms to standard | EN 60947-5-2 |
Symbol | 00991153 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Special features | Oil-resistant | Note on materials | RoHS-compliant Halogen-free |
Application note | https://www.festo.com/Drive-Sensor-Overview | Measured variable | Position |
Measuring principle | Magneto-resistive | Ambient temperature | -40°C 70°C |
Repetition accuracy | 0.2mm | Switching output | PNP |
Switching element function | N/O contact | On time | 1.3ms |
Switch-off time | 4.2ms 7.3ms | Max. switching frequency | 130Hz |
Max. output current | 100mA | Max. output current in mounting kits | 50mA |
Max. switching capacity DC | 2.8W | Max. switching capacity DC in mounting kits | 1.5W |
Voltage drop | 1.7V | Short-circuit protection | yes |
Overload protection | Available | Rated operating voltage DC | 24V |
DC operating voltage range | 5V 30V | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Cable with plug | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 3 | Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection for input 1, connection pattern | 00995573 | Connection outlet orientation | Longitudinal |
Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Torsional resistance: > 300 000 cycles, ±270°/0.1 m Energy chain > 5 million cycles, bending radius 28 mm | Cable length | 0.3m |
Cable characteristic | Suitable for energy chains/robot applications | Material of cable sheath | TPE-U(PUR) |
Type of mounting | Screwed tightly Can be inserted in slot from above | Max. tightening torque | 0.4Nm |
Mounting position | Any | Product weight | 14g |
Housing material | PA-reinforced High-alloy stainless steel | Switching status indication | LED yellow |
Ambient temperature with flexible cable installation | -20°C 70°C | Degree of protection | IP65 IP68 |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 8152201 |
Specifications may be subject to change without notice
