Product Model

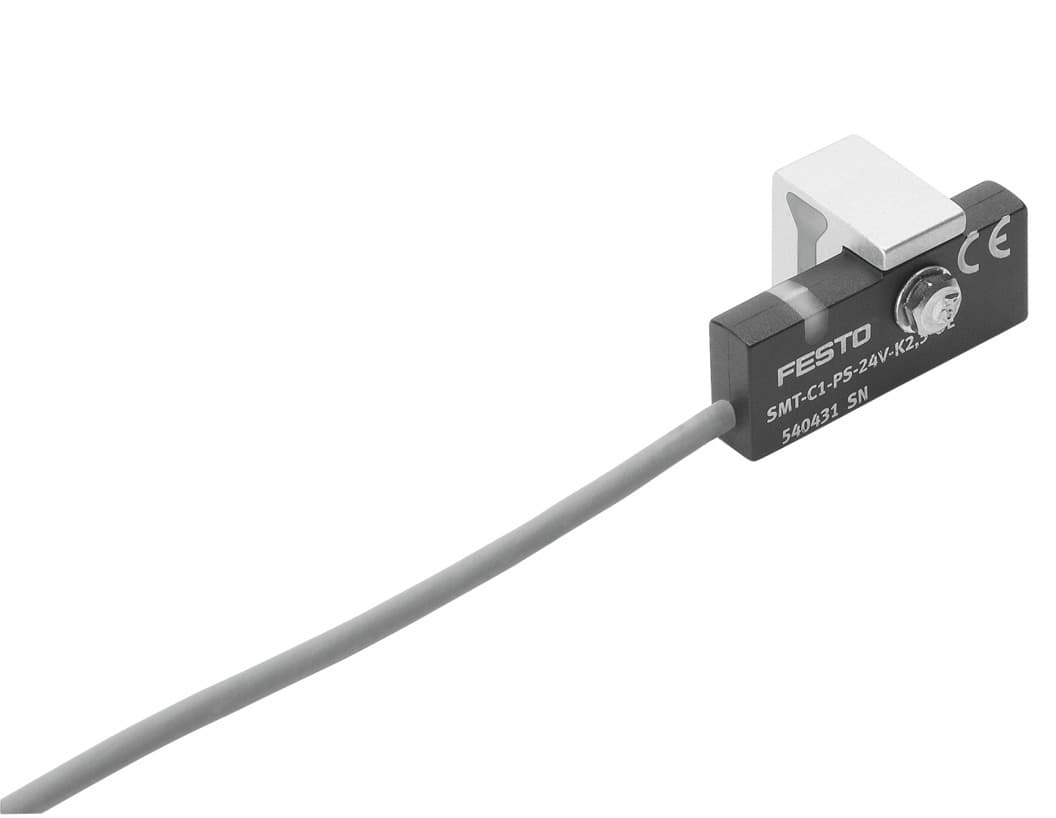

smt-c1-ps-24v-k-10,0-oe
Selling Points
- 1High Accuracy and Durability: Designed with a block design based on EN 60947-5-2 standard for reliability.
- 2Wide Operational Range: Operates within a voltage range of 10V to 30V DC with 10% residual ripple.
- 3Robust Protection: Equipped with reverse polarity protection and inductive protective circuit for all electrical connections.
- 4Flexible Mounting Options: Offers clamped mounting with a tightening torque of 1.2 Nm and optional mounting position.
- 5Compliant with Safety Standards: Meets EU EMC Directive and RoHS Directive with CE marking for compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | Block design | Based on norm | EN 60947-5-2 |
Symbol | 00991152 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant Halogen-free | Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
Measured variable | Position | Measuring principle | Magneto-inductive |
Ambient temperature | -20°C 70°C | Switching output | PNP |
Switching element function | N/O contact | Hysteresis | 2mm |
On time | 0.5ms | Switch-off time | 0.5ms |
Max. output current | 200mA | Max. switching capacity DC | 6W |
Voltage drop | 1.8V | Inductive protective circuit | Adapted to MZ, MY and ME coils |
Minimum load current | 0mA | Residual current | 0.1mA |
Short-circuit protection | Pulsed | Overload protection | Available |
Rated operating voltage DC | 24V | DC operating voltage range | 10V 30V |
Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
Cable length | 10m | Color cable sheath | Gray |
Material of cable sheath | TPE-O | Wire ends | Cable end sleeve |
Type of mounting | Clamped | Tightening torque | 1.2Nm |
Mounting position | Any | Product weight | 114.5g |
Housing colour | Black | Housing material | Wrought aluminum alloy Brass, nickel-plated PP TPE-O TPE-U(PU) High-alloy stainless steel |
Switching status indication | LED yellow | Ambient temperature with flexible cable installation | -20°C 70°C |
Degree of protection | IP65 IP68 as per IEC 60529 | LABS (PWIS) conformity | VDMA24364-B2-L |
For use in the food industry | See supplementary material information | Manufacturer ID | 571340 |
Specifications may be subject to change without notice
