Product Model
sm-test-1
Selling Points

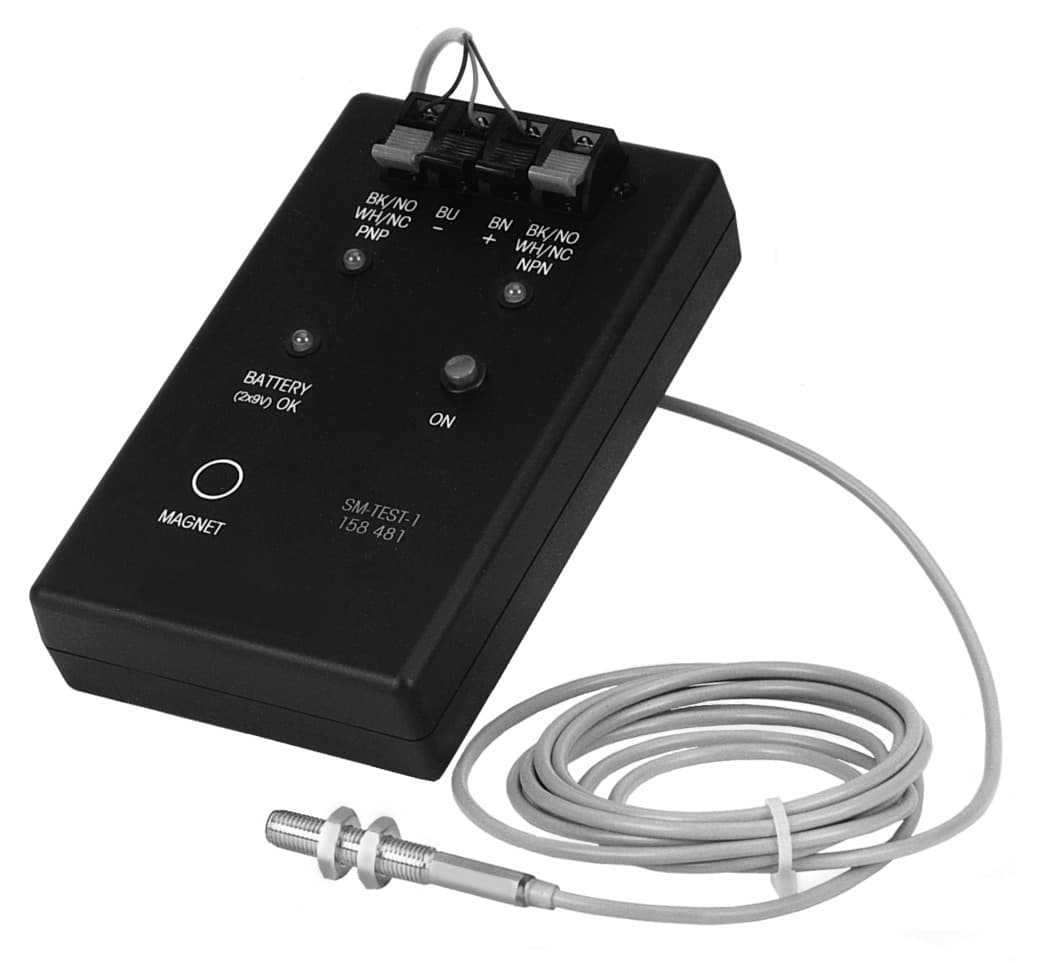

- 1The Festo SM-TEST-1 Sensor Tester is designed to test and adjust sensors and proximity switches with ease, ensuring precise operation in industrial automation settings.
- 2This tool features an integrated voltage supply, allowing for the testing of proximity sensors and the adjustment of proximity switches while attached to cylinders.
- 3The SM-TEST-1 includes LED indicators for battery check, switching status, and identification of PNP, NPN, NC, and NO functions, making it a comprehensive diagnostic tool.
- 4Powered by two 9V block batteries, this tester is portable and easy to use, making it a valuable accessory for maintenance and commissioning tasks.
- 5With its IP20 degree of protection and operating temperature range from 0°C to 40°C, the Festo SM-TEST-1 is built to withstand various industrial environments, ensuring reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
CE marking (see declaration of conformity) | As per EU EMC directive | Ambient temperature | 0°C 40°C |
DC operating voltage range | 12V 20V | Power supply | Two 9V block-type batteries |
Ready status indication | LED green | Degree of protection | IP20 |
LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 158481 |
Specifications may be subject to change without notice
