Product Model

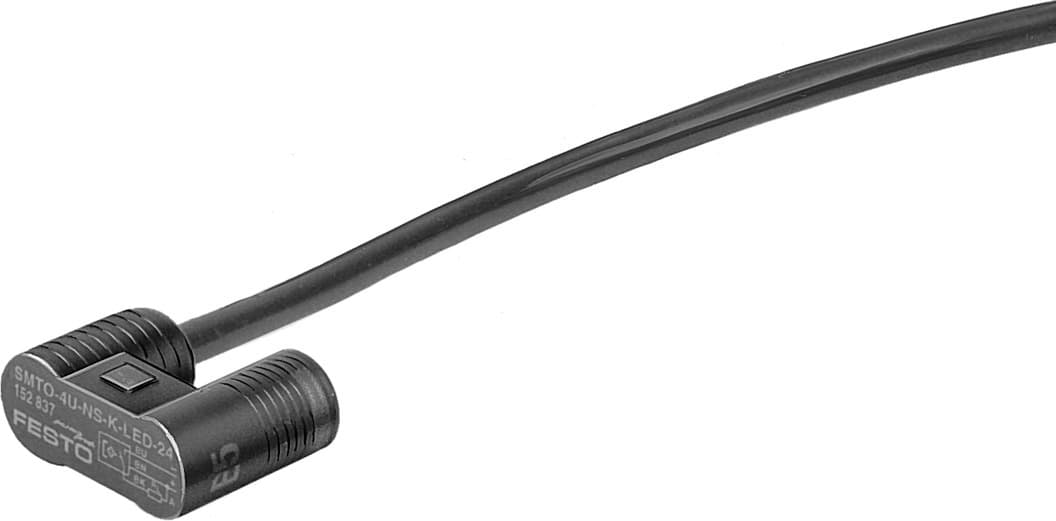

smto-4u-ps-k-led-24
Selling Points
- 1The SMTO-4U-PS-K-LED-24 proximity sensor offers exceptional accuracy and reliability, ensuring precise detection in various industrial settings.
- 2Utilizing an inductive magnet measurement principle, this sensor provides robust performance in detecting objects without physical contact.
- 3With an IP67 protection category, the sensor is designed to withstand harsh environments, including dust and water ingress.
- 4The sensor features fast switching times of less than 5 ms for both switch-on and switch-off, making it suitable for high-speed applications.
- 5Compliant with EU EMC and RCM directives, this sensor ensures compliance with safety standards in multiple regions, making it a reliable choice for global use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | Round | Based on norm | EN 60947-5-2 |
Symbol | 00991152 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant | Measured variable | Position |
Measuring principle | Magneto-inductive | Ambient temperature | -25°C 70°C |
Repetition accuracy | 0.2mm | Switching output | PNP |
Switching element function | N/O contact | On time | 5ms |
Switch-off time | 5ms | Max. output current | 200mA |
Max. switching capacity DC | 6W | Voltage drop | 2V |
Inductive protective circuit | Installed | Minimum load current | 0.1mA |
Residual current | 0.01mA | Short-circuit protection | Pulsed |
Overload protection | Available | DC operating voltage range | 10V 30V |
Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
Cable length | 2.5m | Cable characteristic | Standard |
Color cable sheath | Gray | Material of cable sheath | PVC |
Insulating sheath material | PVC | Wire ends | Tin-plated |
Type of mounting | With accessories | Max. tightening torque | 0.8Nm |
Mounting position | Any | Product weight | 70g |
Housing colour | Black | Housing material | PET |
Switching status indication | LED yellow | Ambient temperature with flexible cable installation | -5°C 70°C |
Degree of protection | IP67 | LABS (PWIS) conformity | VDMA24364-B2-L |
Manufacturer ID | 152836 |
Specifications may be subject to change without notice
