Product Model

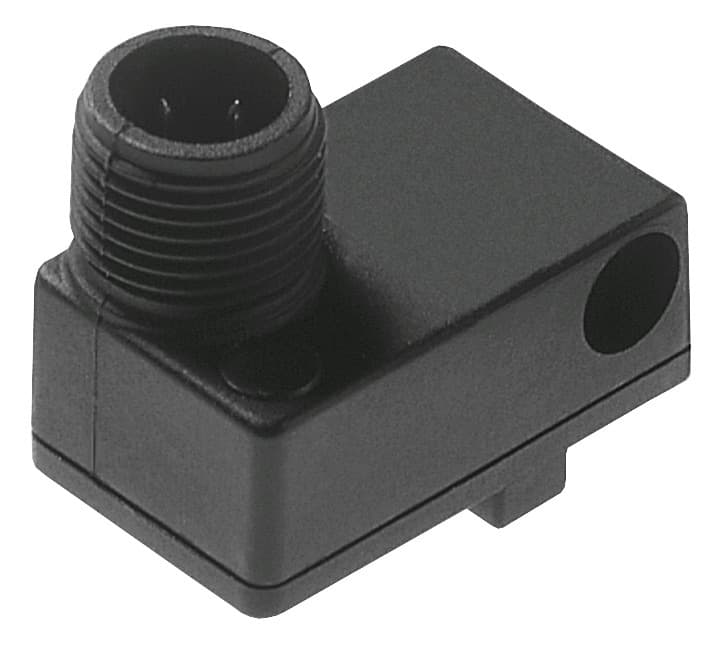

smto-8e-ps-m12-led-24
Selling Points
- 1The SMTO-8E-PS-M12-LED-24 proximity sensor ensures precise detection with a repetition accuracy of 0.2 mm, making it reliable for various industrial applications.
- 2Utilizing magneto-resistive technology, this sensor provides robust performance in detecting objects, ensuring consistent results in challenging environments.
- 3With IP65 and IP67 ratings, the sensor is protected against dust and water, making it suitable for harsh industrial conditions.
- 4The sensor features an LED yellow switching status indicator, providing visual feedback on its operational status, enhancing user convenience.
- 5Designed for T-slot applications, the sensor can be clamped in place with accessories, offering flexibility in installation and integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | for T-slot | Based on norm | EN 60947-5-2 |
Symbol | 00991153 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant | Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
Measured variable | Position | Measuring principle | Magneto-resistive |
Ambient temperature | -20°C 60°C | Repetition accuracy | 0.2mm |
Switching output | PNP | Switching element function | N/O contact |
On time | 1.3ms | Switch-off time | 7.3ms |
Max. switching frequency | 130Hz | Max. output current | 100mA |
Max. switching capacity DC | 2.8W | Voltage drop | 1.8V |
Inductive protective circuit | Adapted to MZ, MY and ME coils | Residual current | 0.01mA |
Short-circuit protection | Pulsed | Overload protection | Available |
DC operating voltage range | 10V 30V | Residual ripple | 10 % |
Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Plug |
Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 1, number of pins/wires | 3 |
Electrical connection for input 1, connection pattern | 00995573 | Connection outlet orientation | Transverse |
Material of pin contacts | Brass, gold-plated | Max. tightening torque plug | 0.5Nm |
Type of mounting | Clamped in T slot With accessories Can be inserted in slot from above | Tightening torque | 0.5Nm |
Mounting position | Any | Product weight | 12g |
Housing colour | Black | Housing material | Wrought aluminum alloy TPE-U(PU) High-alloy stainless steel |
Switching status indication | LED yellow | Degree of protection | IP65 IP67 |
LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 171179 |
