Product Model

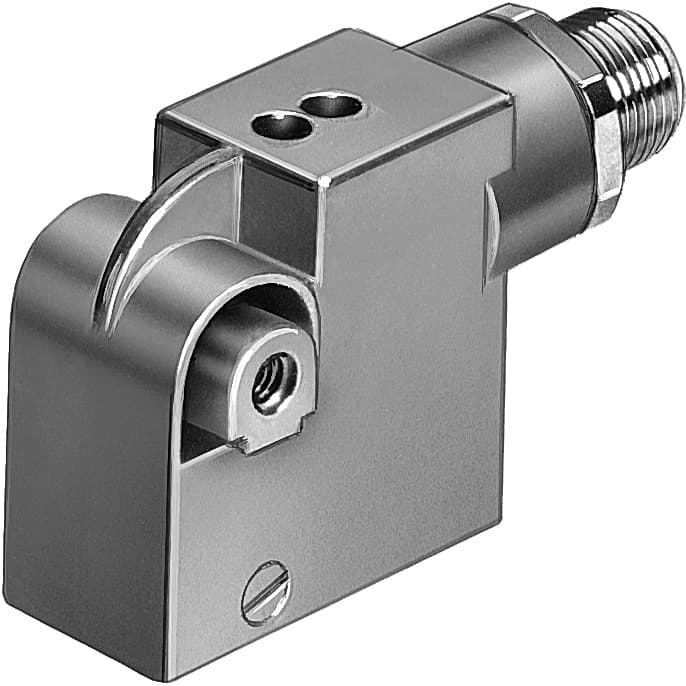

smtso-1-ps-s-led-24
Selling Points
- 1The Festo Proximity Sensor SMTSO-1-PS-S-LED-24 features a block design with a housing made from PA, PUR, and die-cast zinc, ensuring durability and resistance to environmental factors.
- 2This sensor boasts a magneto-inductive measuring principle, providing precise position detection with a repetition accuracy of 0.2 mm, making it ideal for various industrial applications.
- 3The sensor is equipped with a green LED for ready status indication and a yellow LED for switching status indication, enhancing visibility and ease of use.
- 4With a degree of protection of IP67, the SMTSO-1-PS-S-LED-24 is designed to withstand harsh industrial environments, ensuring reliable operation even in challenging conditions.
- 5The sensor supports a wide operating voltage range of 10-30 V DC and has a maximum output current of 200 mA, making it versatile for various industrial control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Design | Block design | Based on norm | EN 60947-5-2 |
Symbol | 00991153 | Certification | RCM compliance mark |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Special features | Welding field resistant Resistant to welding spatter | Note on materials | RoHS-compliant |
Measured variable | Position | Measuring principle | Magneto-inductive |
Ambient temperature | -25°C 70°C | Repetition accuracy | 0.2mm |
Switching output | PNP | Switching element function | N/O contact |
Hysteresis | 0.1mm 1.5mm | On time | 35ms |
Switch-off time | 20ms | Max. switching frequency | 20Hz |
Max. output current | 200mA | Max. switching capacity DC | 6W |
Voltage drop | 3V | Inductive protective circuit | Adapted to MZ, MY and ME coils |
Residual current | 0.01mA | Short-circuit protection | Pulsed |
Overload protection | Available | DC operating voltage range | 10V 30V |
Residual ripple | 10 % | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 3 | Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection for input 1, connection pattern | 00991168 | Connection outlet orientation | Longitudinal |
Material of pin contacts | Brass, gold-plated | Type of mounting | With accessories |
Mounting position | Any | Product weight | 70g |
Housing material | PA PUR Die-cast zinc | Ready status indication | LED green |
Switching status indication | LED yellow | Degree of protection | IP67 |
Resistance to interference from magnetic fields | 50 - 60 Hz Alternating magnetic field | LABS (PWIS) conformity | VDMA24364-B2-L |
Manufacturer ID | 30441 |
