Product Model
snc-32
Selling Points

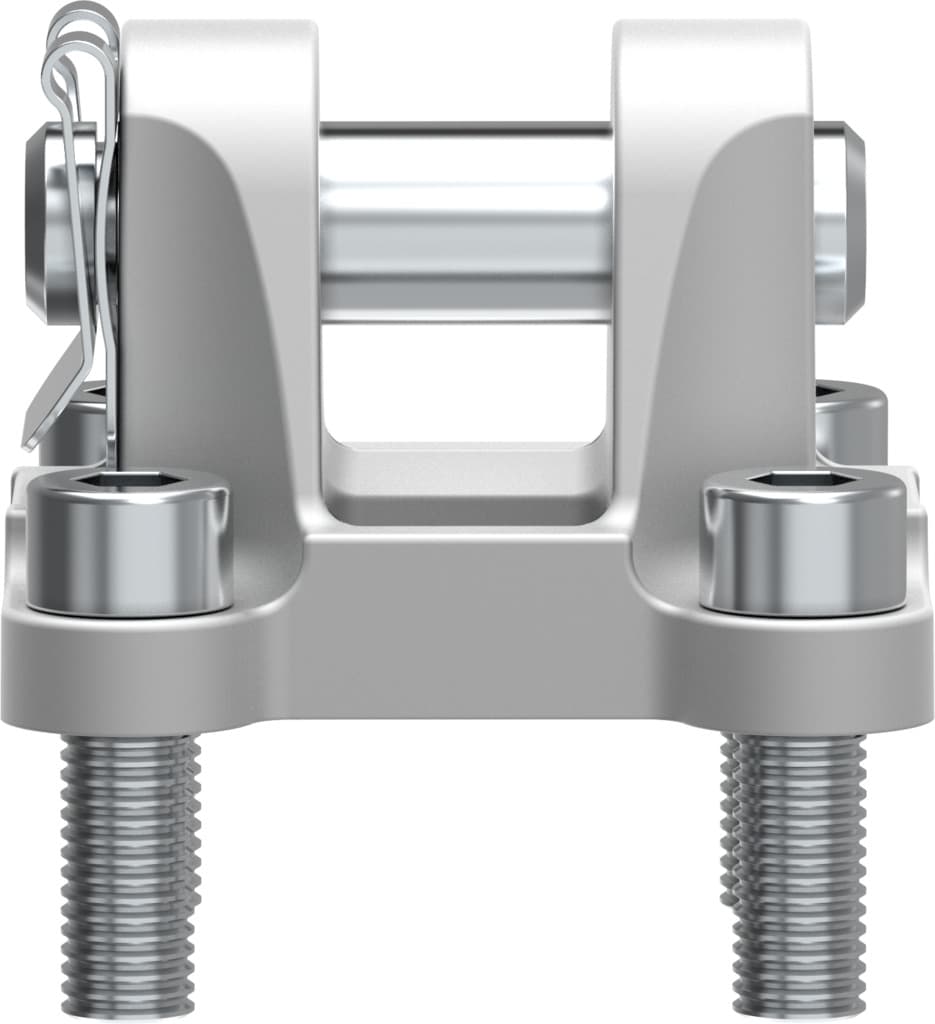

- 1The Festo SNC-32 swivel flange offers low corrosion stress, making it suitable for various industrial applications.
- 2This swivel flange can operate in an ambient temperature range of -40°C to 150°C, ensuring reliability in diverse environments.
- 3The product is free of copper and PTFE, conforming to RoHS standards, and features aluminum die-casting for mounting material.
- 4The SNC-32 swivel flange is designed to fit 32mm bore size and is compatible with the DNC series standard cylinder, offering versatile mounting options.
- 5Weighing 93 grams, this swivel flange is compact and easy to handle, with a size of 32mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -40°C 150°C | Product weight | 93g |
Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
Bolt material | Steel Galvanized | Material of screws | Steel Galvanized |
Fuse material | Spring steel Galvanized | Manufacturer ID | 174383 |
Specifications may be subject to change without notice
