Product Model
snc-40
Selling Points

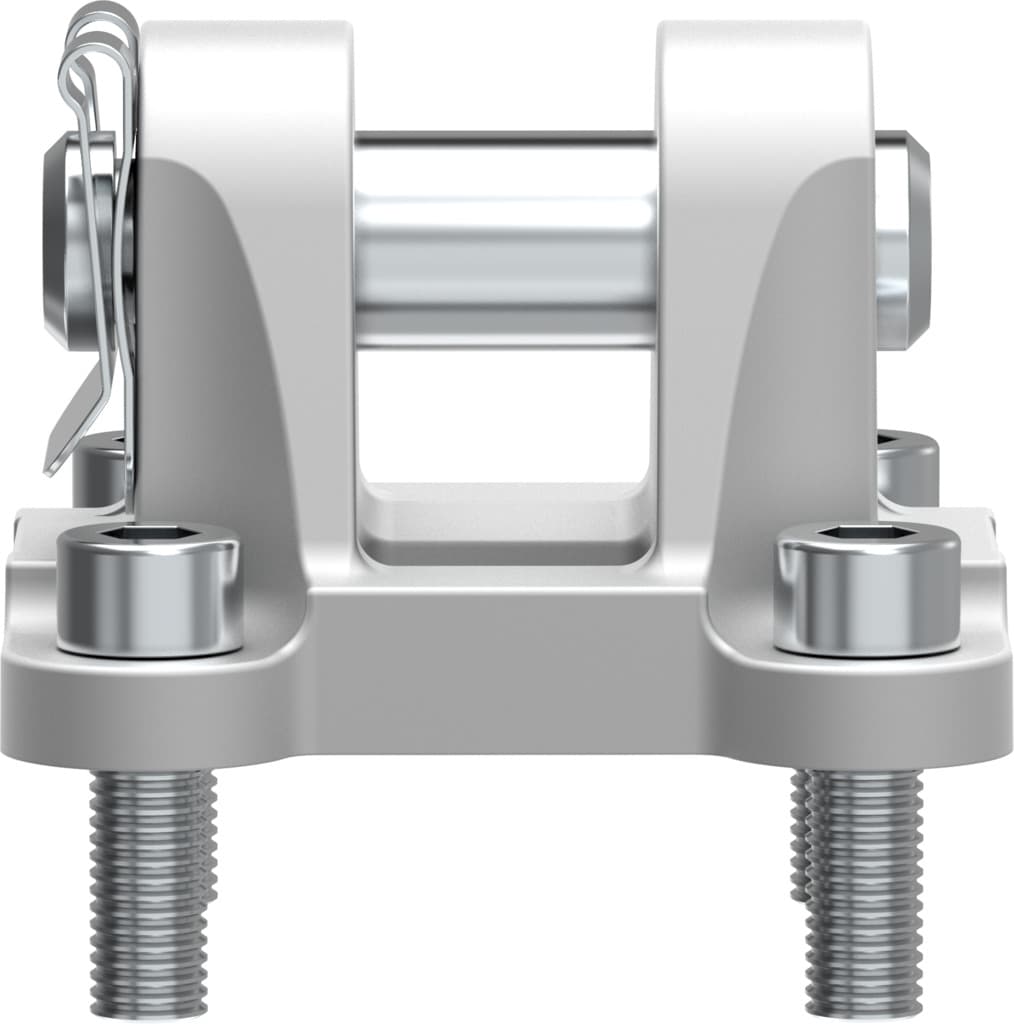

- 1The Festo SNC-40 swivel flange is made from die-cast aluminum, ensuring robustness and durability in various applications.
- 2Designed to fit Festo 40mm diameter DNC/DSBC series standard cylinders, this swivel flange offers flexible mounting options for precise positioning.
- 3Compatible with ambient temperatures ranging from -40°C to 150°C, making it suitable for diverse industrial environments.
- 4With a corrosion resistance class of CRC 1, this swivel flange minimizes the risk of corrosion, ensuring long-term performance.
- 5Measuring 54 x 54mm, the SNC-40 swivel flange is compact and easy to integrate into your pneumatic system, reducing space constraints.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -40°C 150°C | Product weight | 141g |
Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
Bolt material | Steel Galvanized | Material of screws | Steel Galvanized |
Fuse material | Spring steel Galvanized | Manufacturer ID | 174384 |
Specifications may be subject to change without notice
