Product Model
sncb-125-r3
Selling Points

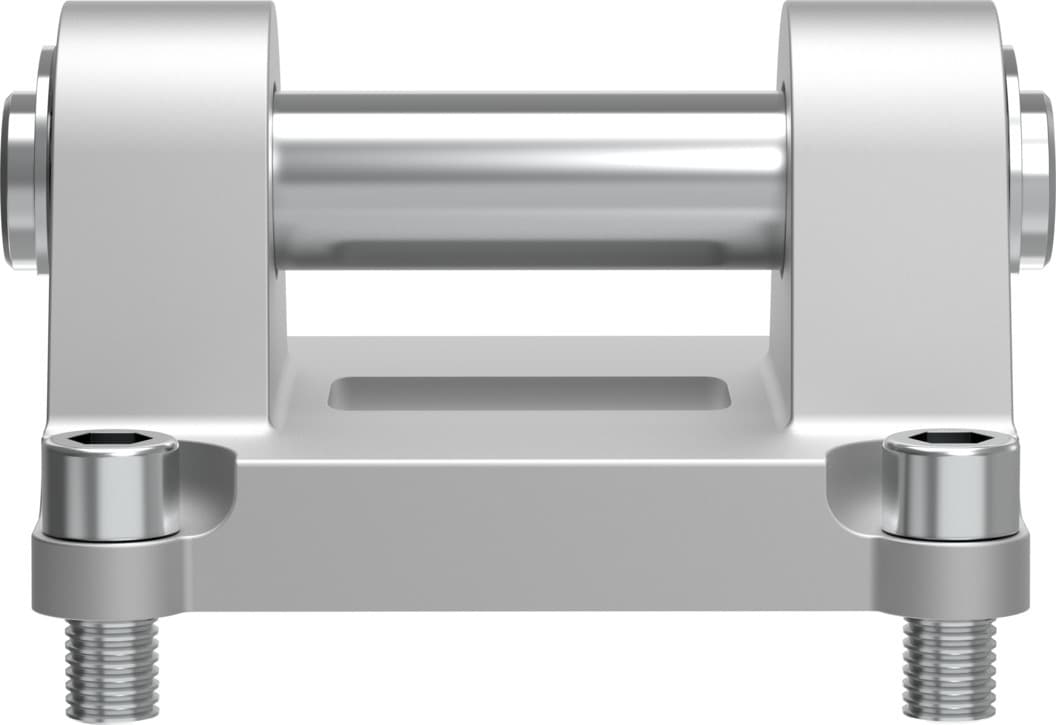

- 1The Festo SNCB-125-R3 swivel flange offers high corrosion protection variants, ensuring durability in harsh environments.
- 2Built on the ISO 15552 standard, this flange ensures compatibility and reliability in pneumatic cylinder applications.
- 3With a corrosion resistance class of CRC3, this flange provides excellent protection against high corrosion stress.
- 4Featuring die-cast aluminum, high-alloy stainless steel, and galvanized steel materials, this flange is suitable for various industrial needs.
- 5Operating from -40°C to 90°C, the SNCB-125-R3 swivel flange can handle a wide range of ambient temperatures, making it versatile for different applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 125 | Based on norm | ISO 15552 |
Variants | High corrosion protection | Corrosion resistance class (CRC) | 3 - High corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
Ambient temperature | -40°C 90°C | Product weight | 1776g |
Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum With protective coating |
Bolt material | High-alloy stainless steel | Material of bearing | Polymer |
Disc material | Steel, galvanized | Material of screws | High-alloy stainless steel |
Fuse material | Spring steel, galvanized | Manufacturer ID | 176950 |
Specifications may be subject to change without notice
