Product Model
sncb-32
Selling Points

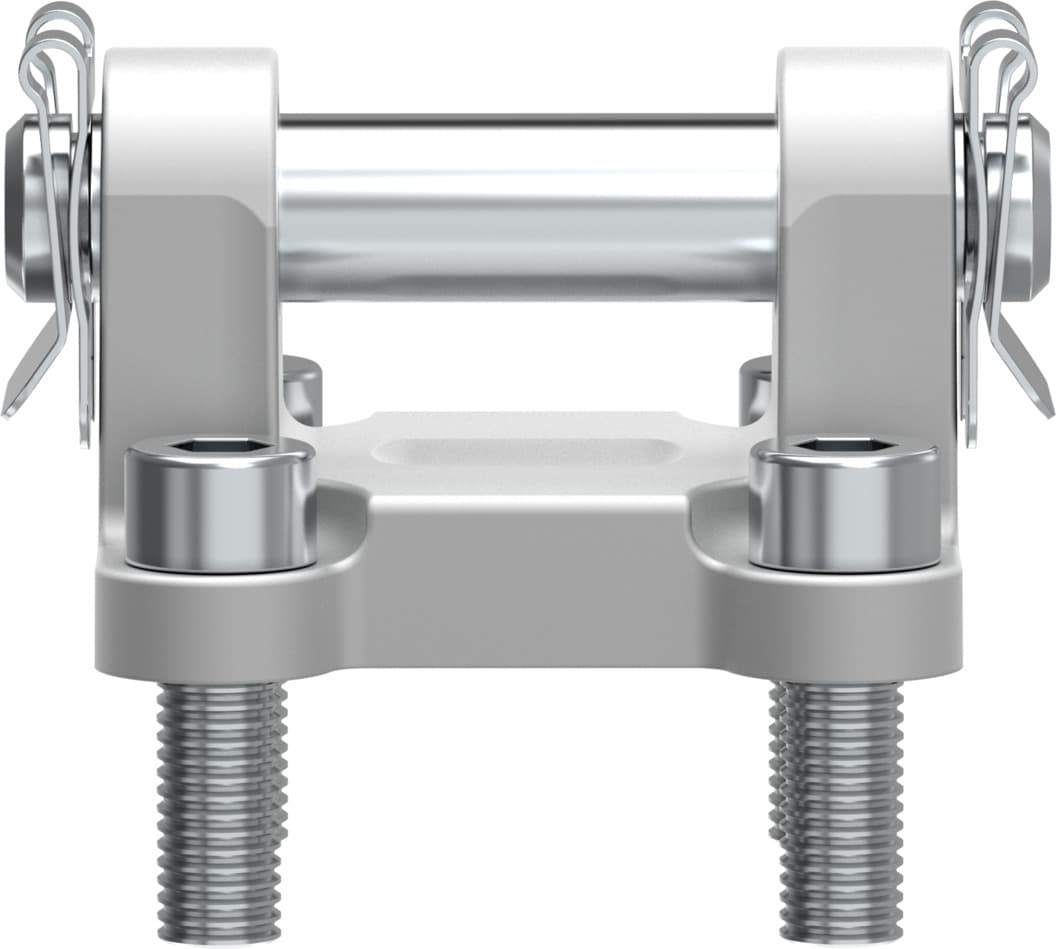

- 1The Festo SNCB-32 swivel flange is designed to meet ISO 15552 standards, ensuring compatibility and reliability in various industrial applications.
- 2This component features a low corrosion resistance class (CRC Class 1), making it suitable for use in environments with minimal corrosion stress.
- 3The SNCB-32 is constructed from durable materials, including die-cast aluminum for the mounting part and galvanized steel for the screws, ensuring long-lasting performance.
- 4The swivel flange operates within an ambient temperature range of -40°C to +90°C, making it versatile for use in various temperature conditions.
- 5The Festo SNCB-32 is RoHS-compliant and LABS (PWIS) conformant, adhering to stringent environmental and safety regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Based on norm | ISO 15552 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper are excluded from use. Exception are printed circuit boards, cables, electrical connectors and coils | Ambient temperature | -40°C 90°C |
Product weight | 103g | Note on materials | RoHS-compliant |
Mounting material | Die-cast aluminum | Bolt material | Steel, galvanized |
Material of bearing | Polymer | Disc material | Steel, galvanized |
Material of screws | Steel, galvanized | Fuse material | Spring steel, galvanized |
Manufacturer ID | 174390 |
Specifications may be subject to change without notice
