Product Model
sncb-40
Selling Points

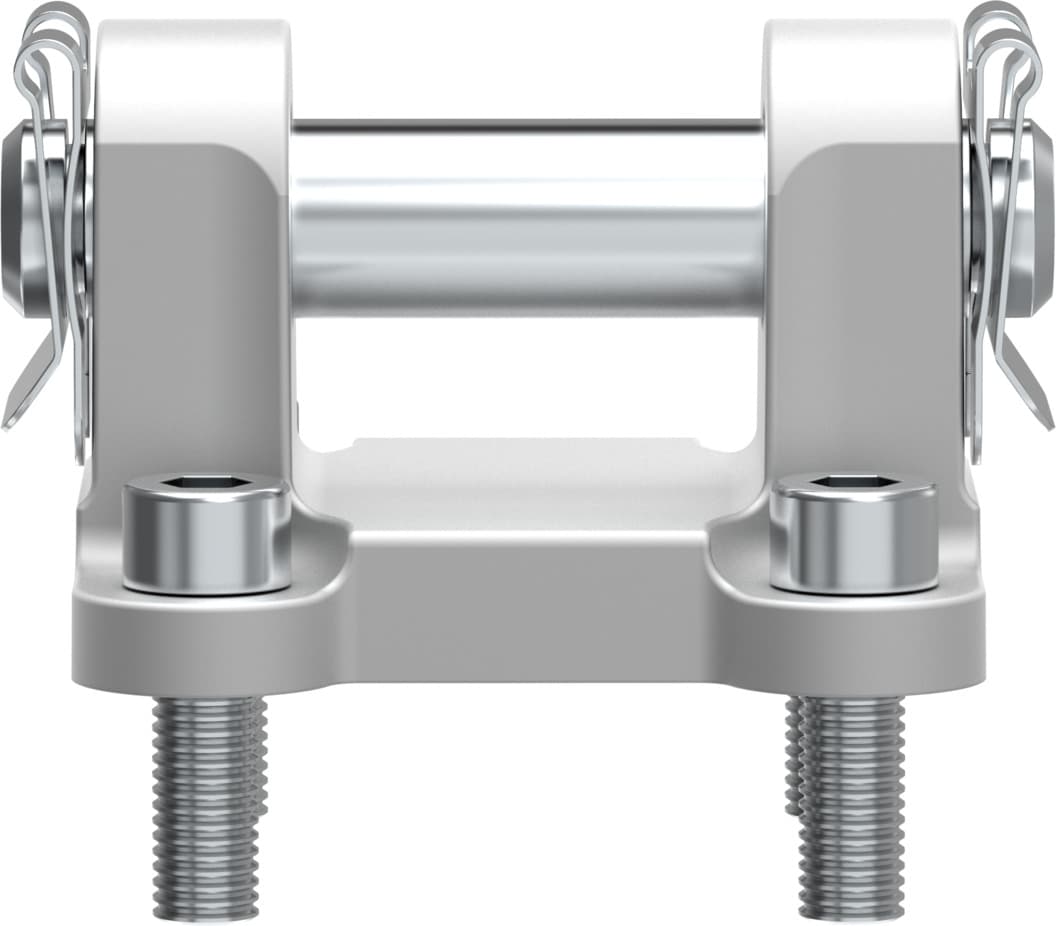

- 1The Festo SNCB-40 swivel flange is designed to meet the ISO 15552 standard, ensuring compatibility with a wide range of pneumatic systems.
- 2This product features a low-corrosion stress rating (CRC Class 1), making it suitable for applications where chemical resistance is crucial.
- 3The SNCB-40 operates within a broad ambient temperature range of -40°C to +90°C, making it versatile for various industrial environments.
- 4Constructed from high-quality materials, including die-cast aluminum, galvanized steel, and polymer bearings, this flange offers durability and reliability.
- 5Compliant with RoHS standards and LABS (PWIS) conformity, the SNCB-40 is an environmentally friendly and safe choice for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 40 | Based on norm | ISO 15552 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper are excluded from use. Exception are printed circuit boards, cables, electrical connectors and coils | Ambient temperature | -40°C 90°C |
Product weight | 155g | Note on materials | RoHS-compliant |
Mounting material | Die-cast aluminum | Bolt material | Steel, galvanized |
Material of bearing | Polymer | Disc material | Steel, galvanized |
Material of screws | Steel, galvanized | Fuse material | Spring steel, galvanized |
Manufacturer ID | 174391 |
Specifications may be subject to change without notice
