Product Model
sncb-50
Selling Points

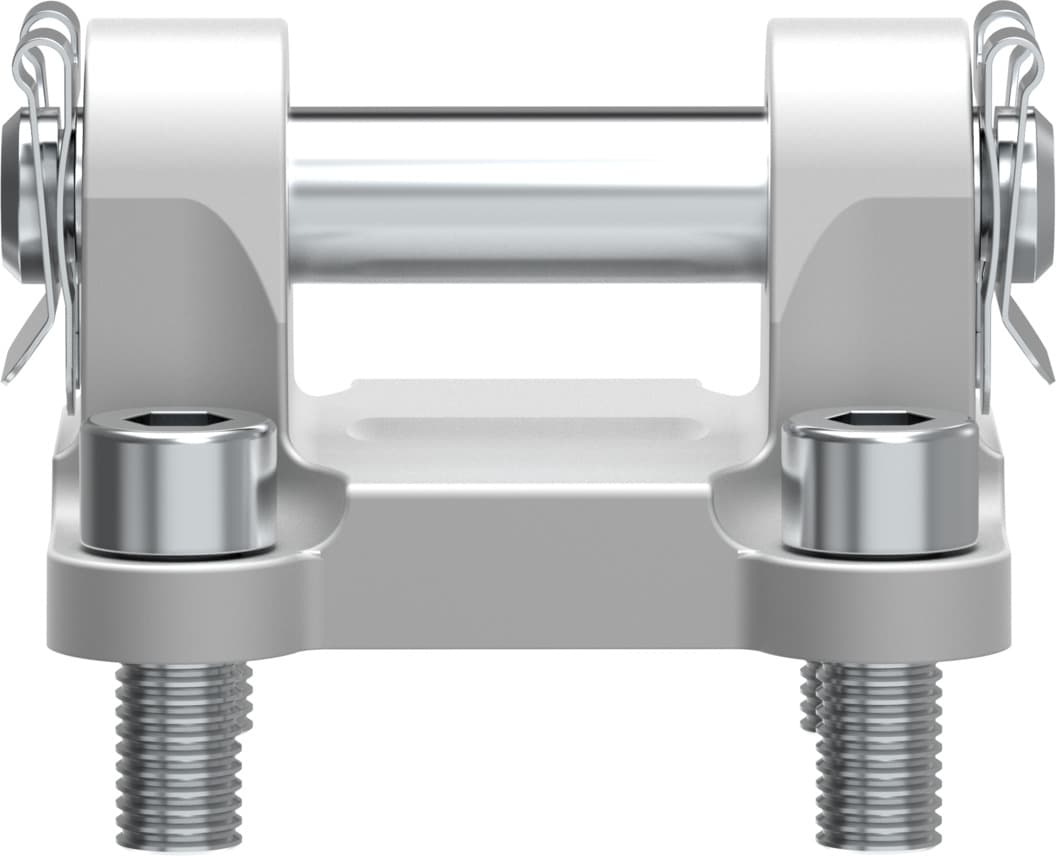

- 1The Festo SNCB-50 swivel flange is designed to fit 50mm bore size, making it compatible with ISO 15552 pneumatic cylinders.
- 2This swivel flange offers low corrosion stress, classified as CRC1, ensuring durability in various industrial environments.
- 3The SNCB-50 meets LABS (PWIS) conformity standards, ensuring it adheres to VDMA24364-B2-L specifications for quality and performance.
- 4The Festo SNCB-50 is part of Festo's extensive range of mounting accessories for ISO 15552 pneumatic cylinders, providing versatile mounting options.
- 5Available in bulk quantities with competitive pricing, making it an economical choice for industrial automation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 50 | Based on norm | ISO 15552 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper are excluded from use. Exception are printed circuit boards, cables, electrical connectors and coils | Ambient temperature | -40°C 90°C |
Product weight | 232g | Note on materials | RoHS-compliant |
Mounting material | Die-cast aluminum | Bolt material | Steel, galvanized |
Material of bearing | Polymer | Disc material | Steel, galvanized |
Material of screws | Steel, galvanized | Fuse material | Spring steel, galvanized |
Manufacturer ID | 174392 |
Specifications may be subject to change without notice
