Product Model
sncb-80
Selling Points

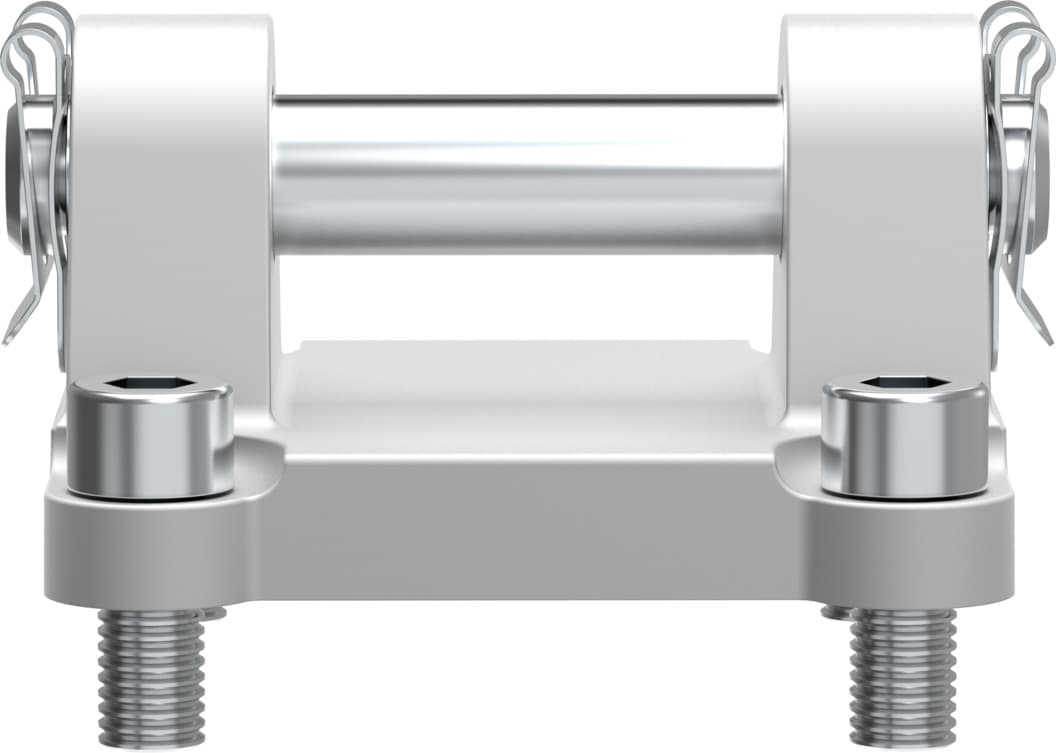

- 1The Festo SNCB-80 swivel flange is designed to meet ISO 15552 standards, ensuring high-quality performance in various industrial applications.
- 2This swivel flange features a low corrosion resistance class (CRC 1), making it suitable for environments with minimal corrosion stress.
- 3The SNCB-80 is LABS (PWIS) compliant and meets VDMA24364-B2-L standards, ensuring it meets stringent quality and safety requirements.
- 4With an ambient temperature range of -40°C to 90°C, the SNCB-80 is versatile for use in a wide range of industrial settings.
- 5Constructed from die-cast aluminum, galvanized steel, and polymer materials, the SNCB-80 offers robust durability and reliability in its design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 80 | Based on norm | ISO 15552 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper are excluded from use. Exception are printed circuit boards, cables, electrical connectors and coils | Ambient temperature | -40°C 90°C |
Product weight | 636g | Note on materials | RoHS-compliant |
Mounting material | Die-cast aluminum | Bolt material | Steel, galvanized |
Material of bearing | Polymer | Disc material | Steel, galvanized |
Material of screws | Steel, galvanized | Fuse material | Spring steel, galvanized |
Manufacturer ID | 174394 |
Specifications may be subject to change without notice
