Product Model
sncl-32
Selling Points

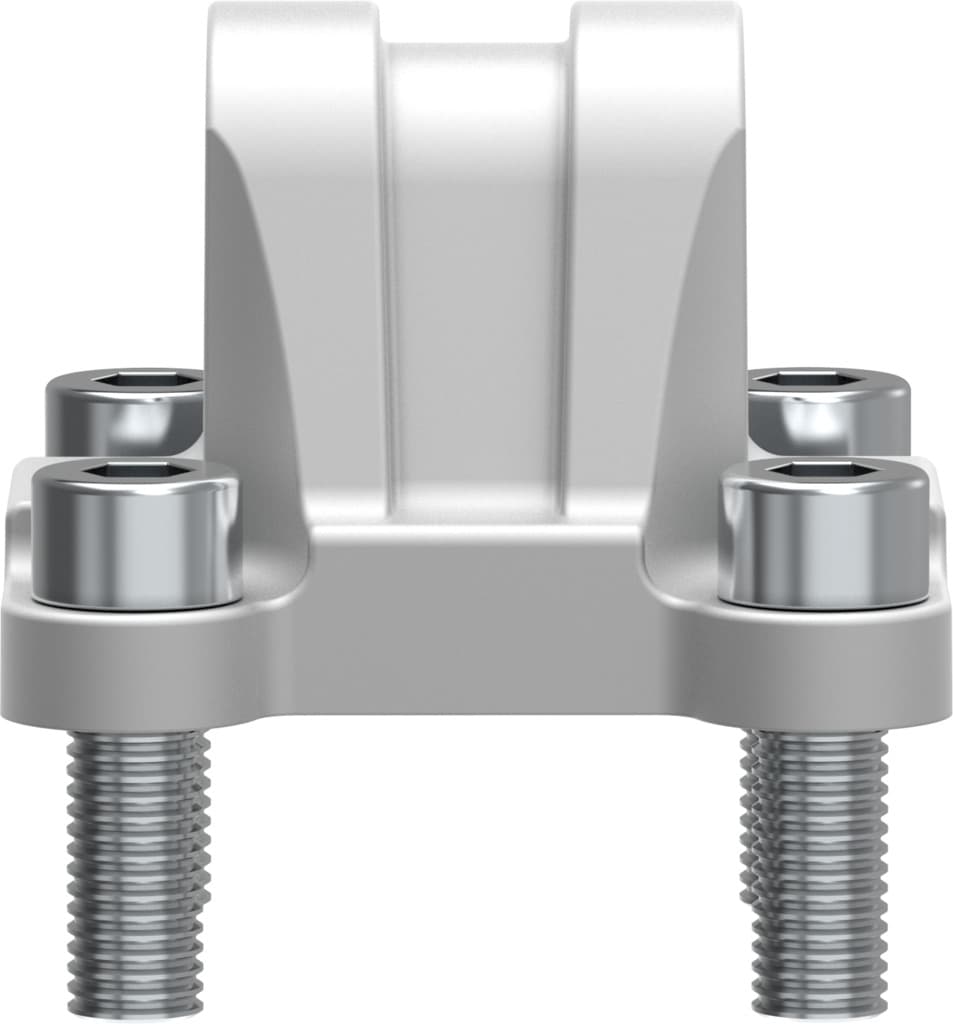

- 1The Festo SNCL-32 swivel flange is designed with a low corrosion stress classification (CRC 1), ensuring it can withstand harsh environments.
- 2This component operates effectively between -40°C and 90°C, making it suitable for a variety of applications.
- 3The SNCL-32 is free from copper and PTFE, conforming to RoHS regulations for environmental sustainability.
- 4Constructed with die-cast aluminum for mounting, polymer for bearings, and galvanized steel for screws, this flange offers robust durability.
- 5The SNCL-32 conforms to ISO 15552 standards, previously also VDMA 24562, ISO 6431, NF E49 003.1, and UNI 10290, ensuring compatibility with various pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -40°C 90°C | Product weight | 71g |
Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
Material of bearing | Polymer | Material of screws | Steel Galvanized |
Manufacturer ID | 174404 |
Specifications may be subject to change without notice
