Product Model
sncl-50
Selling Points

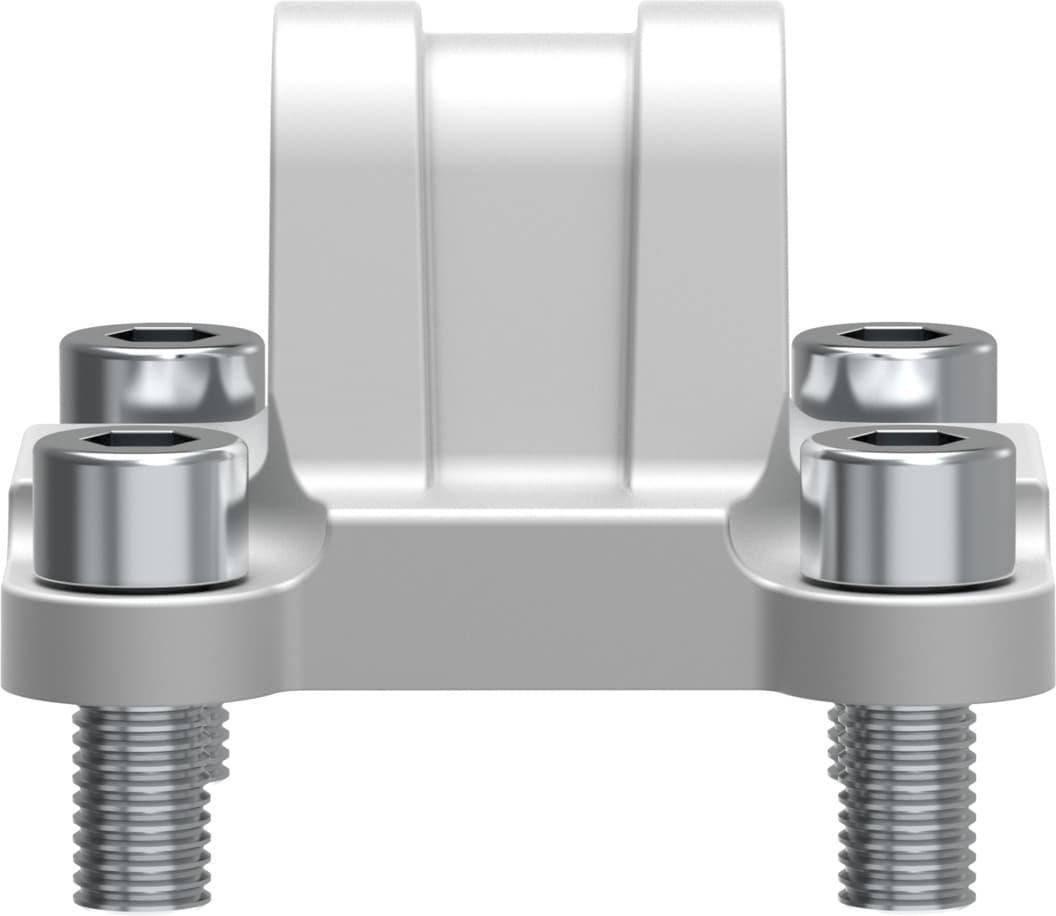

- 1The Festo SNCL-50 swivel flange is designed to meet the ISO 15552 standard, ensuring compatibility with various industrial applications.
- 2This swivel flange features a low corrosion resistance class (CRC 1), making it ideal for use in environments with moderate corrosive conditions.
- 3The SNCL-50 operates within an ambient temperature range of -40 °C to 90 °C, providing flexibility in diverse industrial settings.
- 4Constructed from die-cast aluminum for the mounting material and polymer for the bearing, this swivel flange offers durability and reliability.
- 5The Festo SNCL-50 is RoHS-compliant and available in a size of 50, making it a versatile choice for various pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 50 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -40°C 90°C | Product weight | 158g |
Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
Material of bearing | Polymer | Material of screws | Steel Galvanized |
Manufacturer ID | 174406 |
Specifications may be subject to change without notice
