Product Model
sncl-80
Selling Points

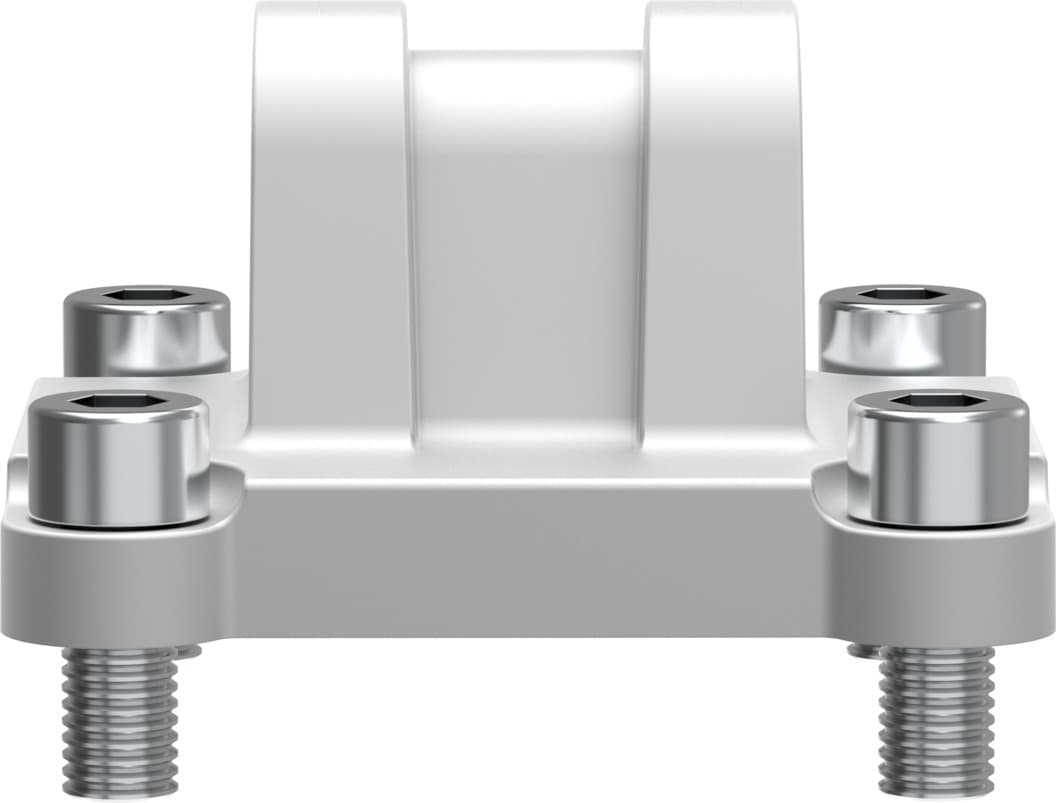

- 1The Festo SNCL-80 swivel flange is made with corrosion-resistant materials, ensuring durability in various environments with a low corrosion stress classification of 1.
- 2This swivel flange operates effectively in a broad ambient temperature range of -40 to 90°C, making it suitable for diverse industrial applications.
- 3The product is free of copper and PTFE, conforming to RoHS standards, ensuring environmental safety and compliance.
- 4The swivel flange features an aluminum die-cast mounting material, providing strength and stability.
- 5Weighing 436 grams, the SNCL-80 swivel flange is designed for size 80 applications, meeting the standards of ISO 15552 and VDMA 24652.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 80 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -40°C 90°C | Product weight | 436g |
Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
Material of bearing | Polymer | Material of screws | Steel Galvanized |
Manufacturer ID | 174408 |
Specifications may be subject to change without notice
