Product Model
sncs-32
Selling Points

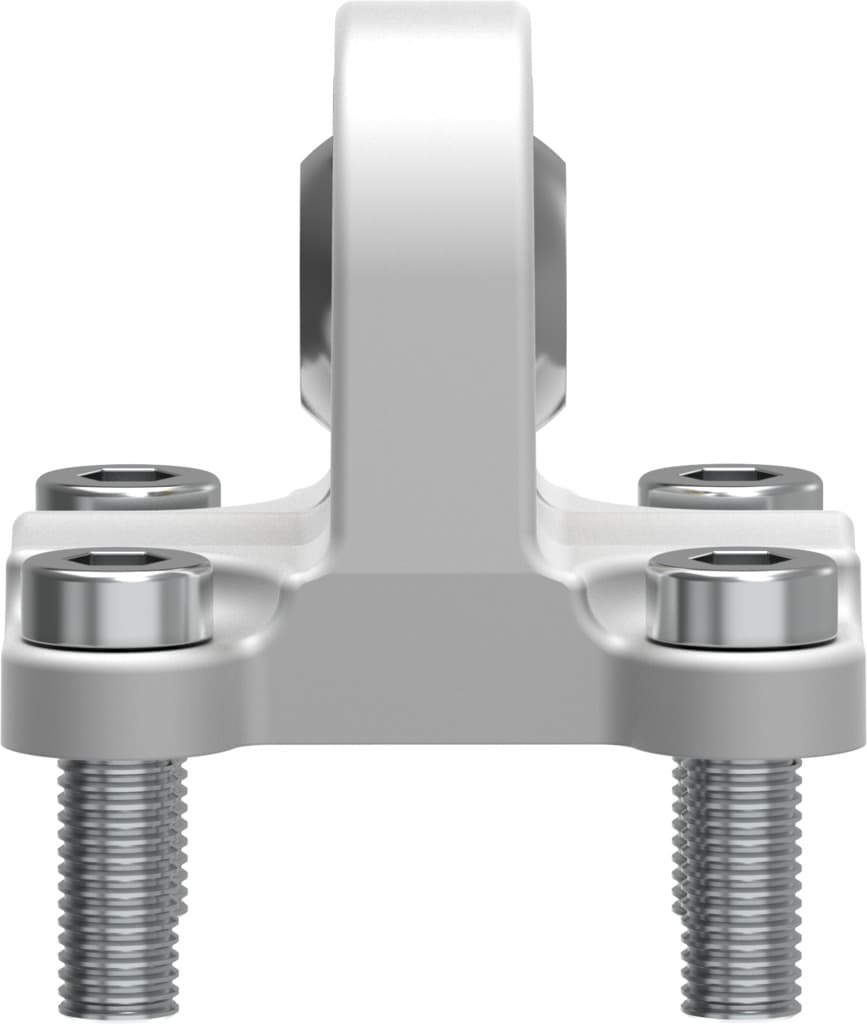

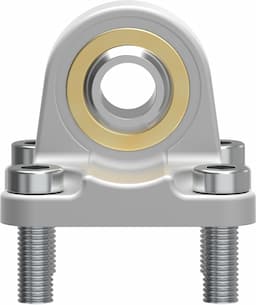

- 1The Festo SNCS-32 clevis flange is made from die-cast aluminum, ensuring high strength and corrosion resistance with a low corrosion stress rating of 1.
- 2This product is designed to operate within a wide ambient temperature range of -40°C to 150°C, making it suitable for various industrial applications.
- 3The SNCS-32 features galvanized steel screws for added durability and resistance to environmental factors.
- 4It is RoHS-compliant, meeting the requirements for environmentally friendly products and ensuring compliance with EU regulations.
- 5The product weighs 86 grams and is available in a size of 32, making it compact and easy to integrate into pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 32 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -40°C 150°C | Product weight | 86g |
Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
Rod end bearing material | Steel PTFE | Material of screws | Steel Galvanized |
Manufacturer ID | 174397 |
Specifications may be subject to change without notice
