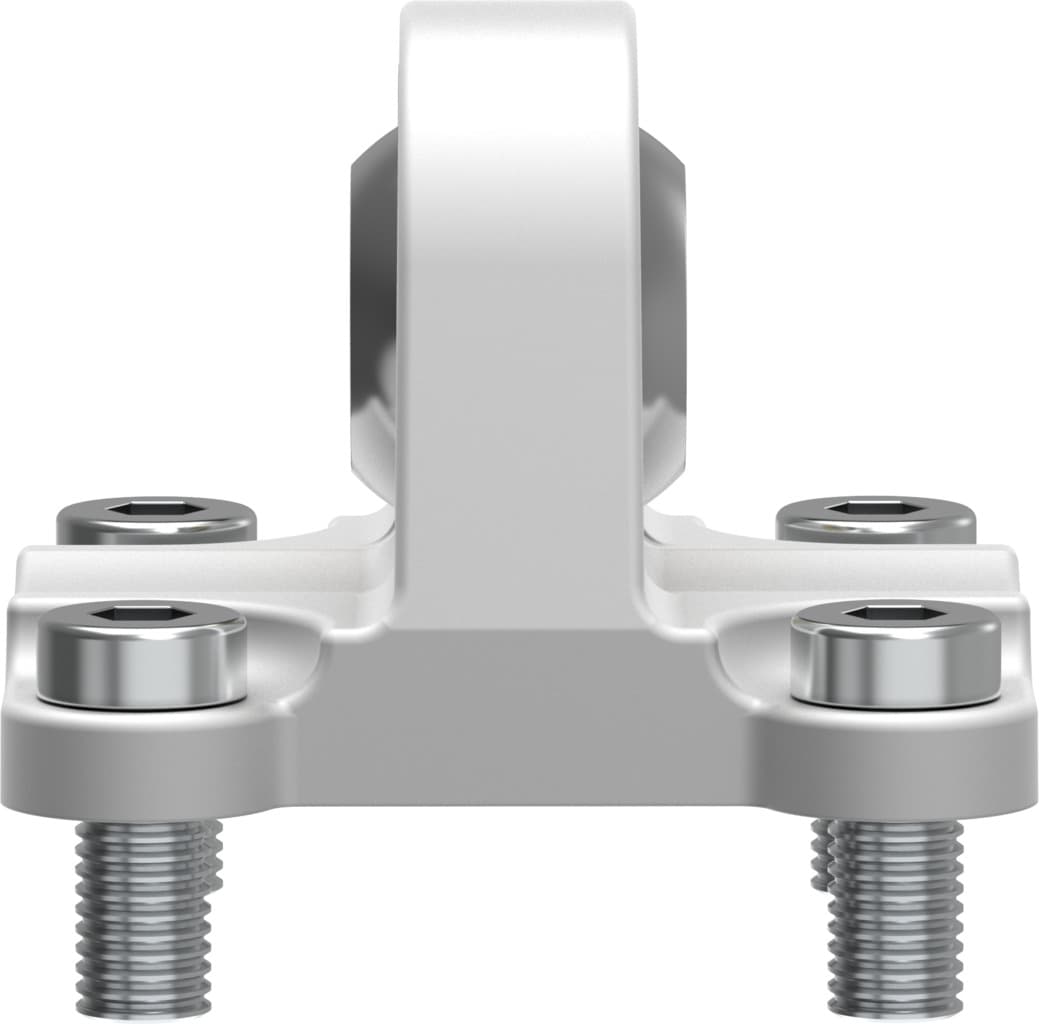

Product Model
sncs-50
Selling Points
- 1The SNCS-50 features a die-cast aluminum mounting material, ensuring durability and resistance to environmental stress.
- 2With a corrosion resistance class of 1, this flange is designed to withstand low corrosion stress, making it suitable for a wide range of industrial applications.
- 3The SNCS-50 operates within an ambient temperature range of -40°C to 150°C, providing flexibility in various operating conditions.
- 4The product conforms to RoHS standards, ensuring it meets environmental regulations and is safe for use in modern industrial settings.
- 5The SNCS-50 is based on ISO 15552 standards and features a rod end bearing made of steel with PTFE, ensuring precise and reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 50 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -40°C 150°C | Product weight | 216g |
Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
Rod end bearing material | Steel PTFE | Material of screws | Steel Galvanized |
Manufacturer ID | 174399 |
Specifications may be subject to change without notice
