Product Model
sncs-63
Selling Points

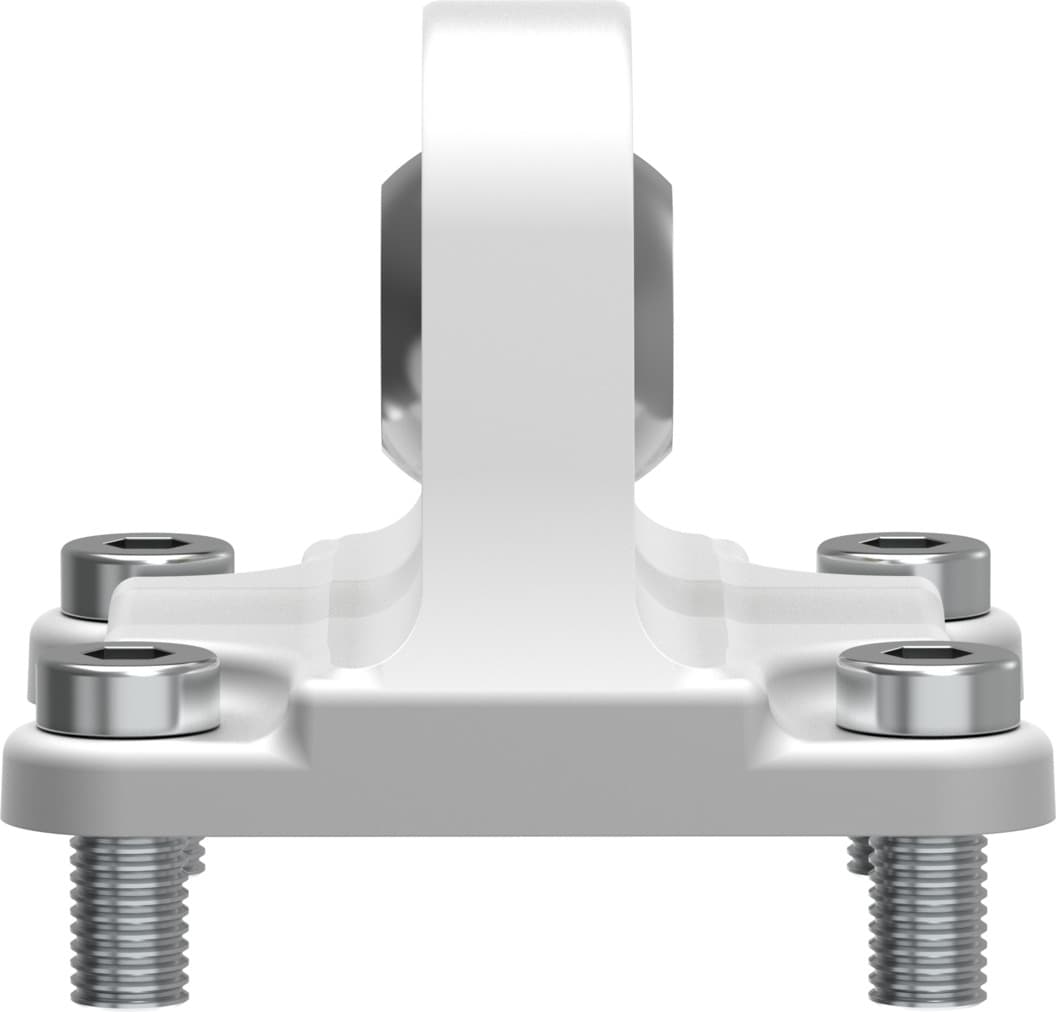

- 1Versatile Mounting Options - The Festo SNCS-63 swivel flange offers a wide range of mounting options for Festo's ISO 15552 pneumatic cylinders, ensuring flexibility in your applications.
- 2Moderate Corrosion Resistance - With a corrosion resistance classification of CRC 2, the SNCS-63 provides moderate protection against corrosion, making it suitable for various industrial environments.
- 3Wide Temperature Range - The product operates within an ambient temperature range of -40°C to 150°C, ensuring reliable performance in diverse temperature conditions.
- 4High-Quality Materials - Constructed from die-cast aluminum with steel and galvanized screws, the SNCS-63 ensures durability and long-lasting performance.
- 5Compliance with Standards - The Festo SNCS-63 complies with ISO 15552 standards and is RoHS compliant, meeting international quality and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 63 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -40°C 150°C | Product weight | 281g |
Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
Rod end bearing material | Steel PTFE | Material of screws | Steel Galvanized |
Manufacturer ID | 174400 |
Specifications may be subject to change without notice
