Product Model
sncs-80
Selling Points

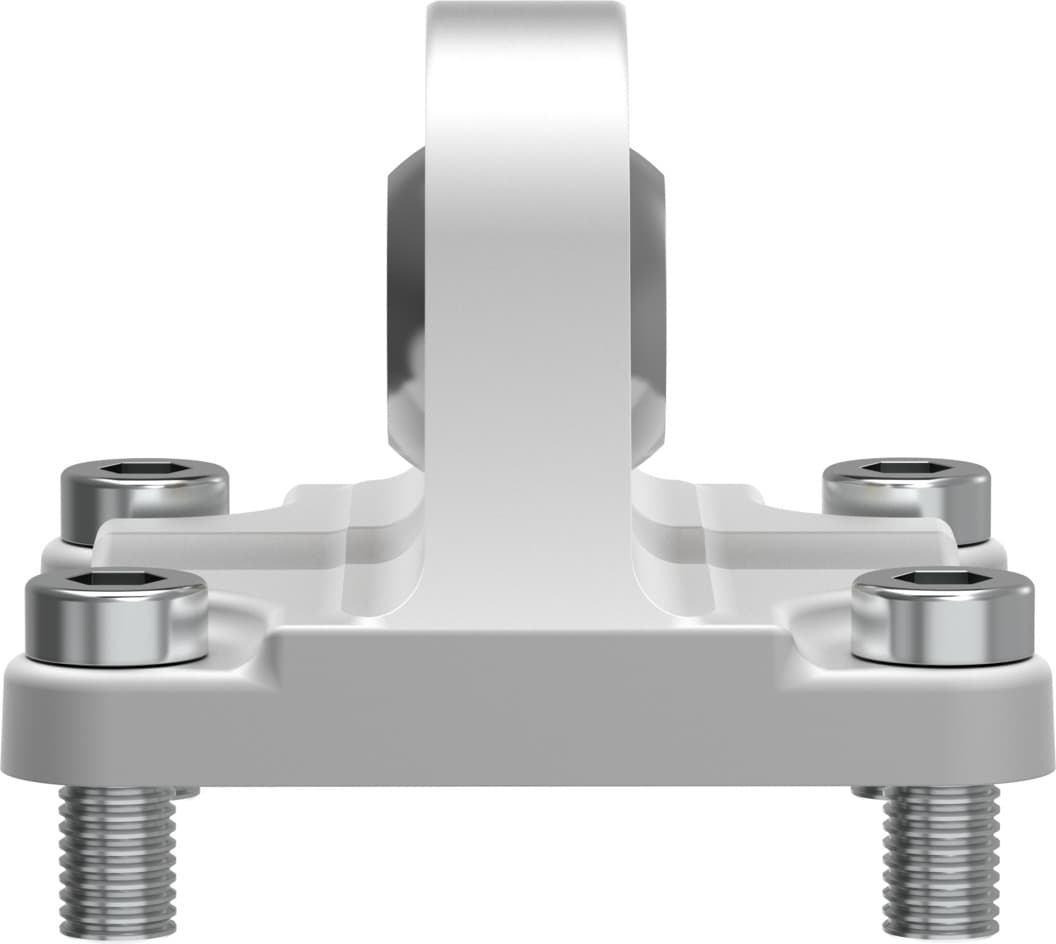

- 1The Festo SNCS-80 swivel flange is designed to fit 80mm bore size ISO 15552 cylinders, ensuring precise and reliable mounting for your pneumatic systems.
- 2Made from die-cast aluminum with steel and galvanized screws, this flange offers moderate corrosion resistance (CRC=2) and a weight of 557 grams.
- 3The SNCS-80 is engineered to withstand ambient temperatures ranging from -40°C to 150°C, making it suitable for a wide range of industrial applications.
- 4This swivel flange is part of Festo's extensive range of mounting accessories for ISO 15552 cylinders, providing versatile mounting options for high-precision pneumatic systems.
- 5With its robust construction and high-quality materials, the Festo SNCS-80 swivel flange ensures reliable performance and durability in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 80 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -40°C 150°C | Product weight | 557g |
Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
Rod end bearing material | Steel PTFE | Material of screws | Steel Galvanized |
Manufacturer ID | 174401 |
Specifications may be subject to change without notice
