Product Model
sngb-160
Selling Points

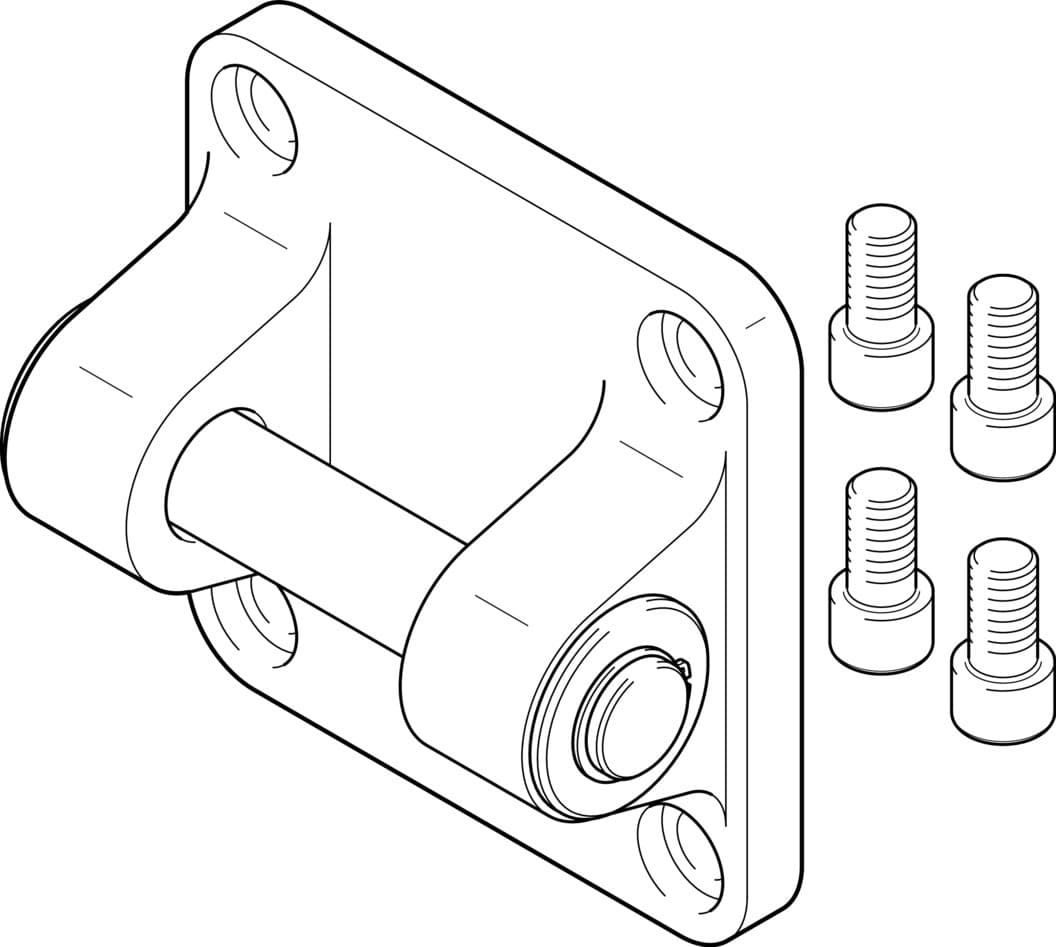

- 1The Festo SNGB-160 swivel flange is designed to meet ISO 15552 standards, ensuring compatibility with various pneumatic systems.
- 2This swivel flange features moderate corrosion resistance (CRC Class 2), making it suitable for applications in challenging environments.
- 3The product operates within a wide ambient temperature range of -40°C to 90°C, providing flexibility in different operational conditions.
- 4Constructed with die-cast aluminum for the mounting part and polymer bearings, the SNGB-160 offers a robust and durable design.
- 5The swivel flange is RoHS-compliant, ensuring that it adheres to environmental regulations and uses materials that are free from hazardous substances.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 160 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -40°C 90°C | Product weight | 3445g |
Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
Bolt material | Steel Galvanized | Material of bearing | Polymer |
Disc material | Steel, galvanized | Material of screws | Steel Galvanized |
Fuse material | Spring steel, galvanized | Manufacturer ID | 34547 |
Specifications may be subject to change without notice
