Product Model
sngl-200
Selling Points

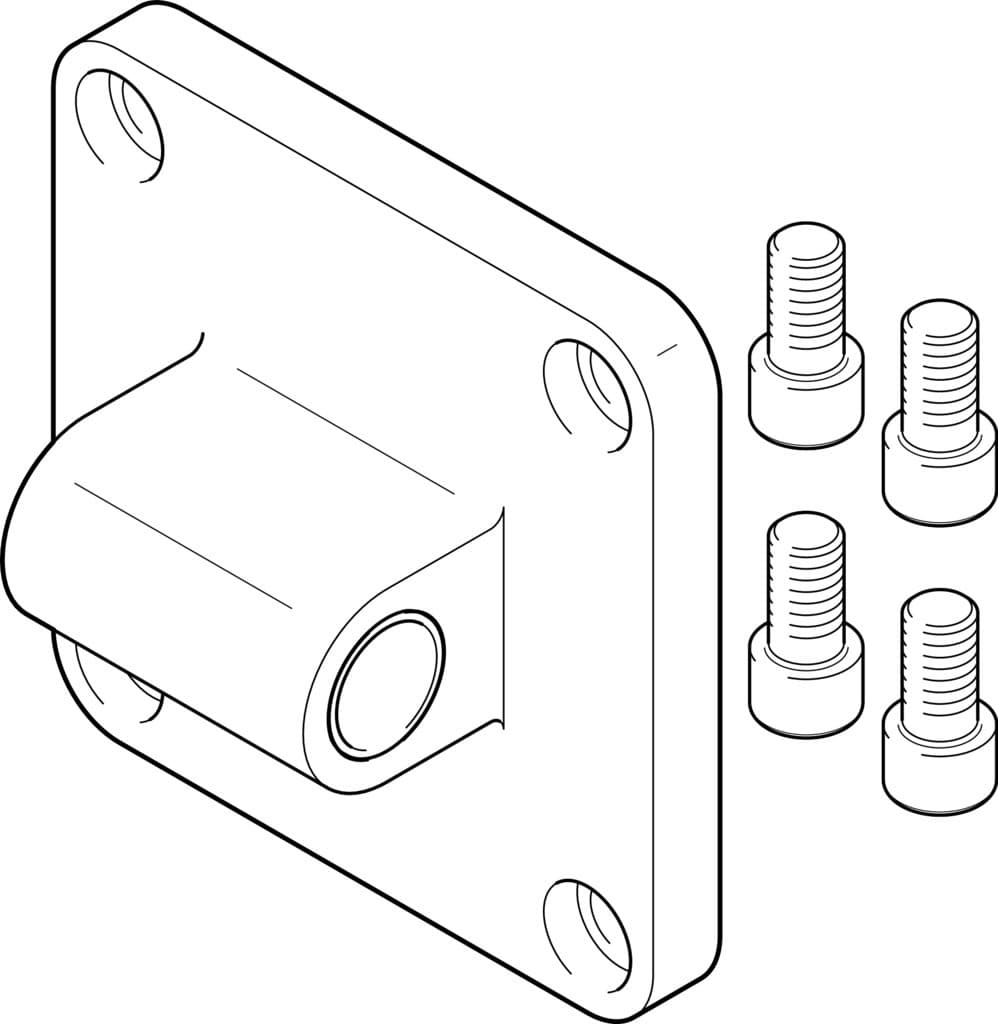

- 1The Festo SNGL-200 Swivel Flange is designed to fit 200mm bore sizes, ensuring compatibility with a wide range of pneumatic systems.
- 2This swivel flange conforms to the ISO 15552 standard, previously also VDMA 24562, ISO 6431, NF E49 003.1, and UNI 10290, ensuring high-quality performance.
- 3With a corrosion resistance class of CRC 2 - Moderate corrosion stress, the SNGL-200 provides reliable operation in various environments.
- 4The product features die-cast aluminum for mounting, polymer for bearings, and steel with galvanized screws for durability and resistance to wear.
- 5Operating within an ambient temperature range of -40°C to 90°C, the SNGL-200 is suitable for a variety of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 200 | Conforms to standard | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -40°C 90°C | Product weight | 3713g |
Mounting material | Die-cast aluminum | Material of bearing | Polymer |
Material of screws | Steel Galvanized | Manufacturer ID | 151535 |
Specifications may be subject to change without notice
