Product Model

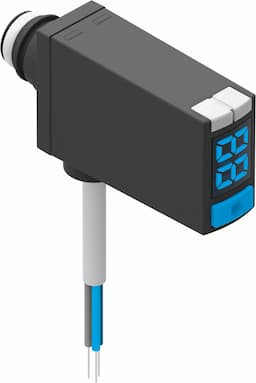

spae-b2r-pc10-pnlk-2.5k
Selling Points
- 1Measures relative pressure with 1.5% FS accuracy and 0.3% FS repetition accuracy.
- 2Compatible with compressed air (ISO 8573-1:2010) and allows operation with oil lubrication.
- 3Monitors pressure from -1 to 1 bar, with a maximum overload pressure of 5 bar.
- 4Supports Smart sensor profile with IO-Link protocol (Device V 1.1), enabling advanced data transmission and diagnostics.
- 5Lightweight (40g) and compact, with a 2.5m cable length for easy installation in various mounting positions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00995430 | Certification | RCM compliance mark c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Certificate issuing authority | UL E322346 | Note on materials | RoHS-compliant |
Measured variable | Relative pressure | Method of measurement | Piezoresistive pressure sensor with display |
Pressure measuring range initial value | -14.5psi | Pressure measuring range end value | 14.5psi |
Overload pressure | 72.5psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
Ambient temperature | 0°C 50°C | ADC resolution | 10bit |
Accuracy in ± % FS | 1.5%FS | Repetition accuracy in ± %FS | 0.3%FS |
Temperature co-efficient in ± %FS/K | 0.05%FS/K | Switching output | PNP/NPN switchable |
Switching function | Freely programmable | Switching element function | N/C contact N/O contact Switchable |
On time | 1ms | Switch-off time | 1ms |
Max. output current | 100mA | Display range start value | 0%FS |
Display range end value | 99%FS | Short-circuit protection | yes |
Protocol | IO-Link? | IO-Link?, protocol version | Device V 1.1 |
IO-Link?, profile | Smart sensor profile | IO-Link?, function classes | Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel |
IO-Link?, communication mode | COM2 (38,4 kBd) | IO-Link?, SIO mode support | Yes |
IO-Link?, port class | A | IO-Link?, process data width OUT | 0 Byte |
IO-Link?, process data width IN | 2 Byte | IO-Link?, process data content IN | 14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring) |
IO-Link?, minimum cycle time | 3 ms | IO-Link?, data memory required | 500byte |
DC operating voltage range | 18V 30V | Reverse polarity protection | for all electrical connections |
Electrical connection | 3-wire Cable Open end | Cable length | 2.5m |
Type of mounting | Pin-type conneciton | Mounting position | Any |
Pneumatic connection | Cartridge 10 mm | Product weight | 40g |
Housing material | PA-reinforced | Sealing ring material | FPM NBR |
Display type | LED display 2-digit | Displayable unit(s) | %FS |
Switching status indication | LED yellow | Setting options | IO-Link? Teach-in Via display and pushbuttons |
Protection against tampering | PIN code | Setting range threshold value | 1% 98% |
Degree of protection | IP40 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 8025979 |
Specifications may be subject to change without notice
