Product Model

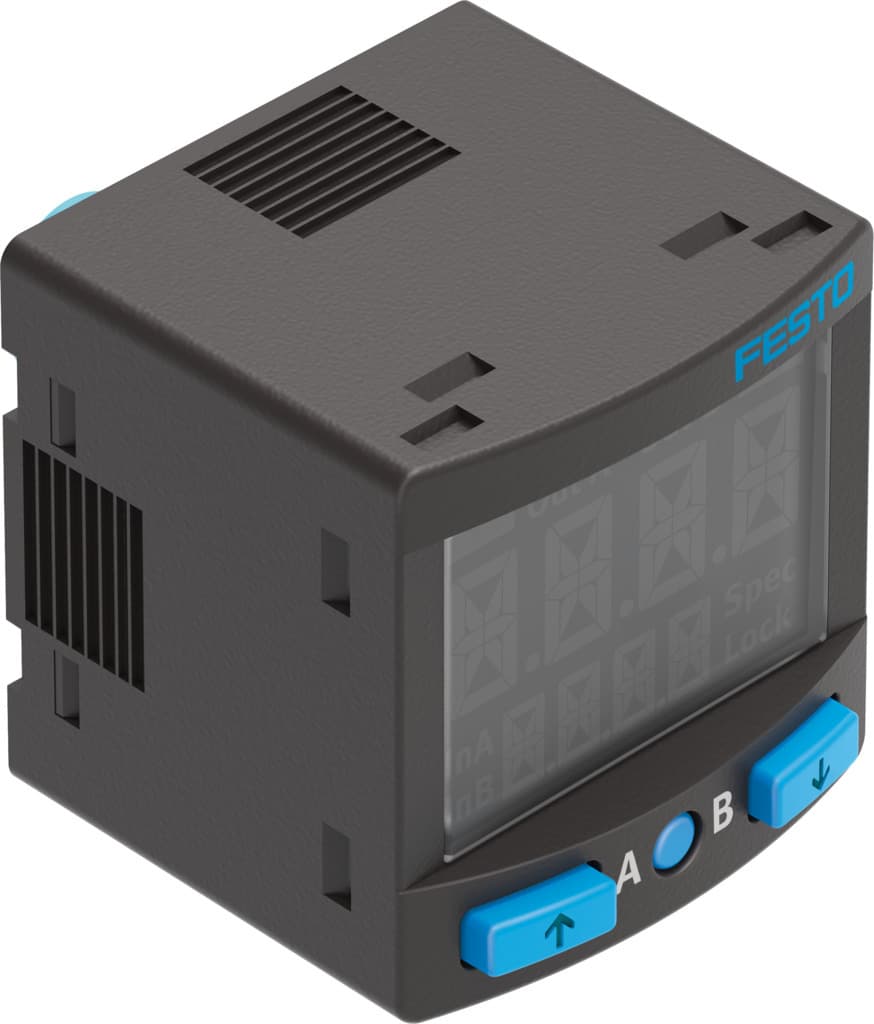

span-b11r-q4-pn-pn-l1
Selling Points
- 1The Festo SPAN-B11R-Q4-PN-PN-L1 pressure sensor offers precise measurements with a high degree of accuracy, ensuring reliable data in industrial settings.
- 2This pressure sensor features a plug connection with 4 pins, making it simple to integrate into your system with minimal wiring complexity.
- 3The sensor measures pressure from -0.1 MPa to 1 MPa, covering a broad range of applications with ease.
- 4With an IP40 degree of protection and moderate corrosion resistance, the SPAN-B11R-Q4-PN-PN-L1 is built to withstand harsh industrial environments.
- 5The sensor meets RCM compliance and is UL-listed, ensuring it meets stringent safety and performance standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00995686 | Certification | RCM compliance mark c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Certificate issuing authority | UL E322346 | Note on materials | RoHS-compliant |
Measured variable | Relative pressure | Method of measurement | Piezoresistive pressure sensor |
Pressure measuring range initial value | -14.5psi | Pressure measuring range end value | 145psi |
Max. overload pressure | 15bar | Overload pressure | 217.5psi |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible |
Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
Accuracy in ± % FS | 1.5%FS | Repetition accuracy in ± %FS | 0.3%FS |
Temperature co-efficient in ± %FS/K | 0.05%FS/K | Switching output | 2 x PNP or 2 x NPN switchable |
Switching function | Window comparator Threshold value comparator Auto difference monitoring | Switching element function | N/C contact/N/O contact switchable |
Max. output current | 100mA | Short-circuit protection | yes |
DC operating voltage range | 15V 30V | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | Connection diagram L1J |
Electrical connection 1, number of pins/wires | 4 | Electrical connection for input 1, connection pattern | 00995428 |
Type of mounting | Front panel mounting With thread With wall/surface bracket | Mounting position | Any |
Pneumatic connection | For pneumatic tubing outside diameter 4 mm | Product weight | 25g |
Housing material | PA-reinforced | Materials in contact with the media | FPM NBR PA-reinforced |
Display type | Illuminated LCD | Displayable unit(s) | MPa bar inH2O inHg kPa kgf/cm2 mbar mmHg psi |
Setting options | Teach-in Via display and pushbuttons | Protection against tampering | PIN code |
Setting range threshold value | 0% 100% | Setting range hysteresis | 0% 90% |
Degree of protection | IP40 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
Manufacturer ID | 8134894 |
Specifications may be subject to change without notice
